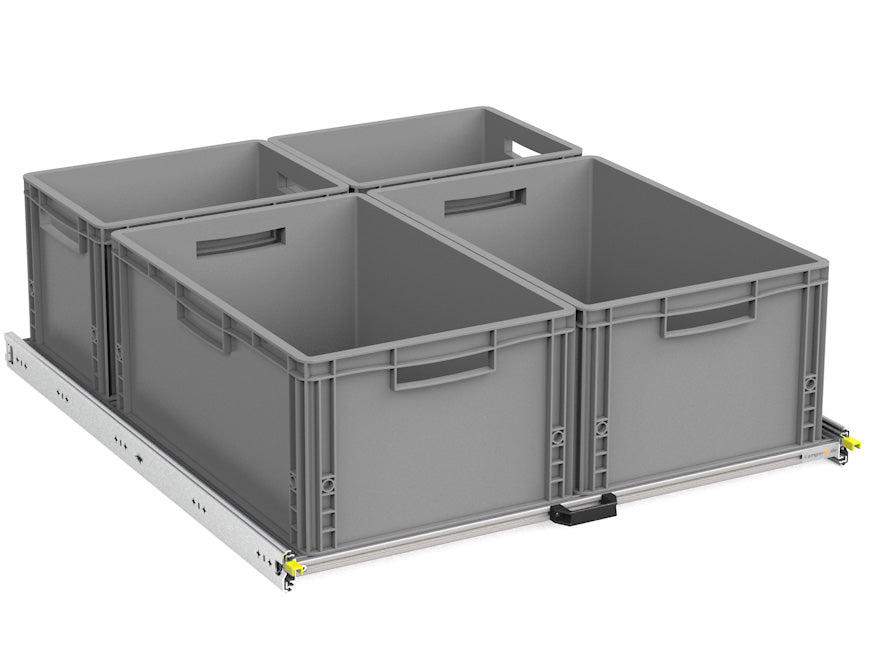

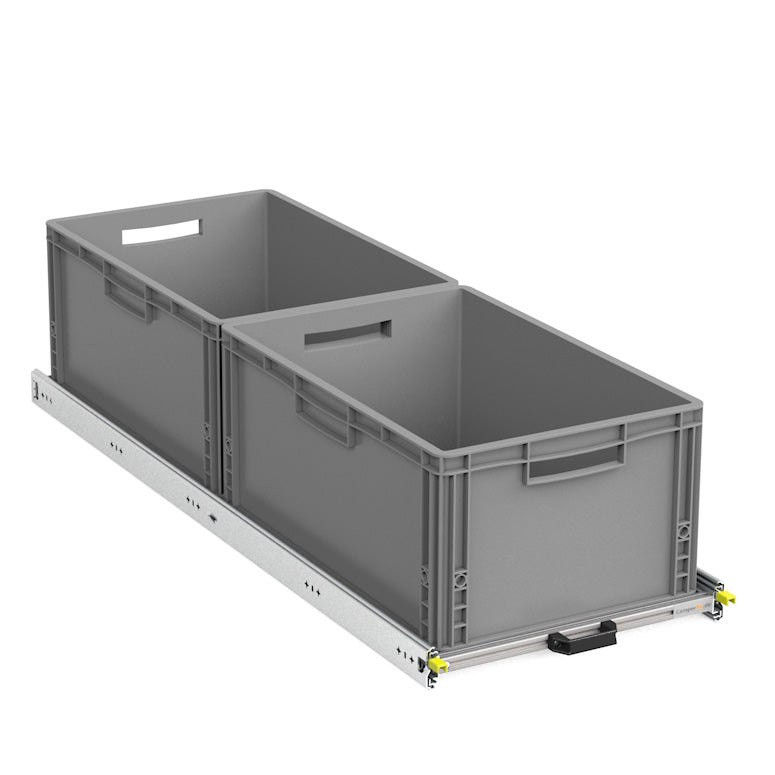

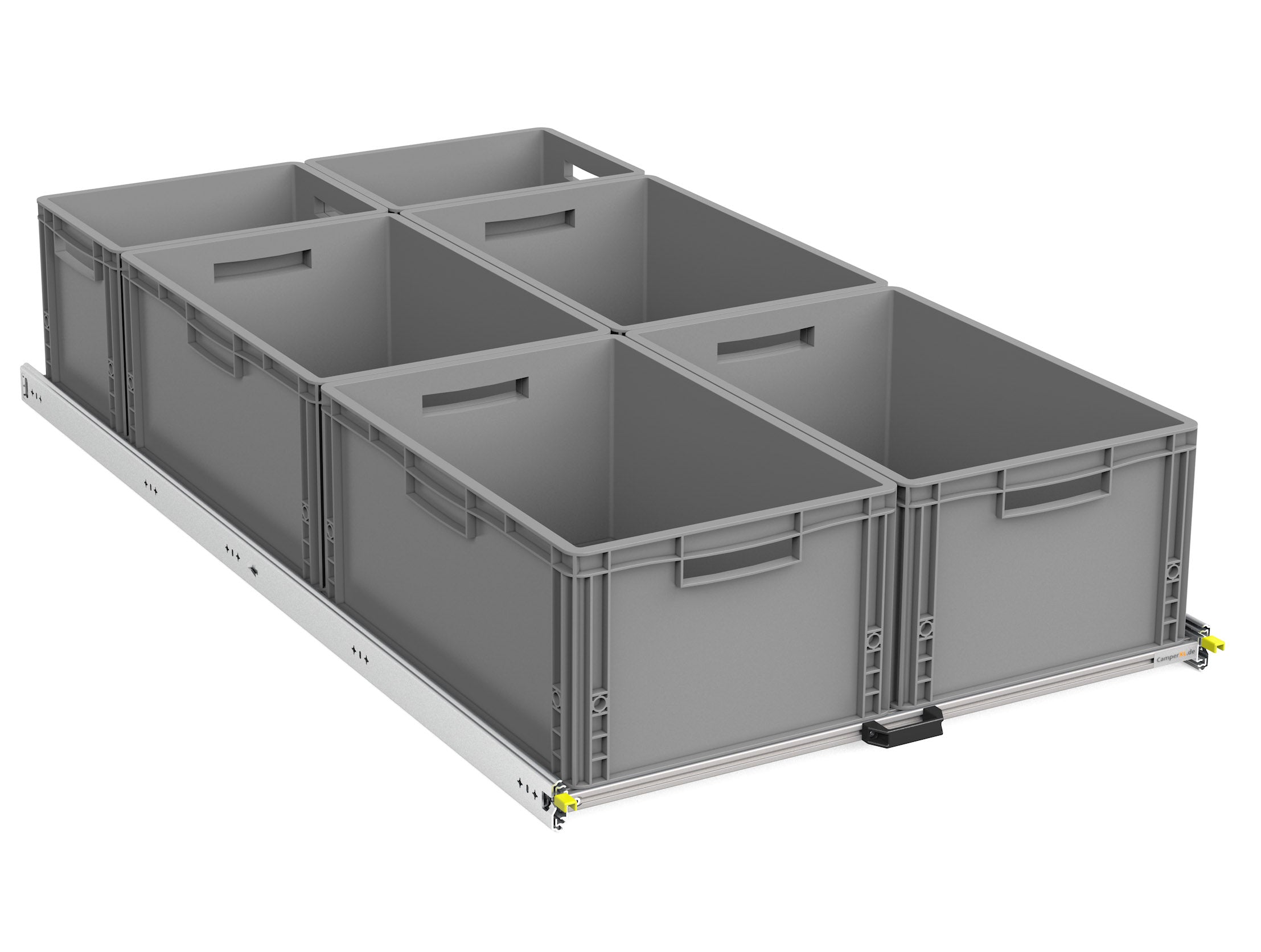

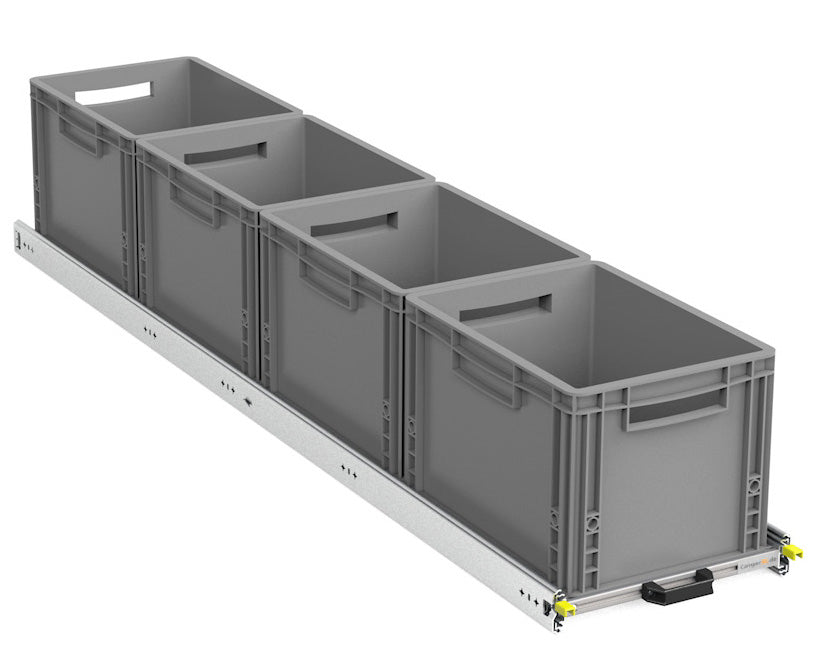

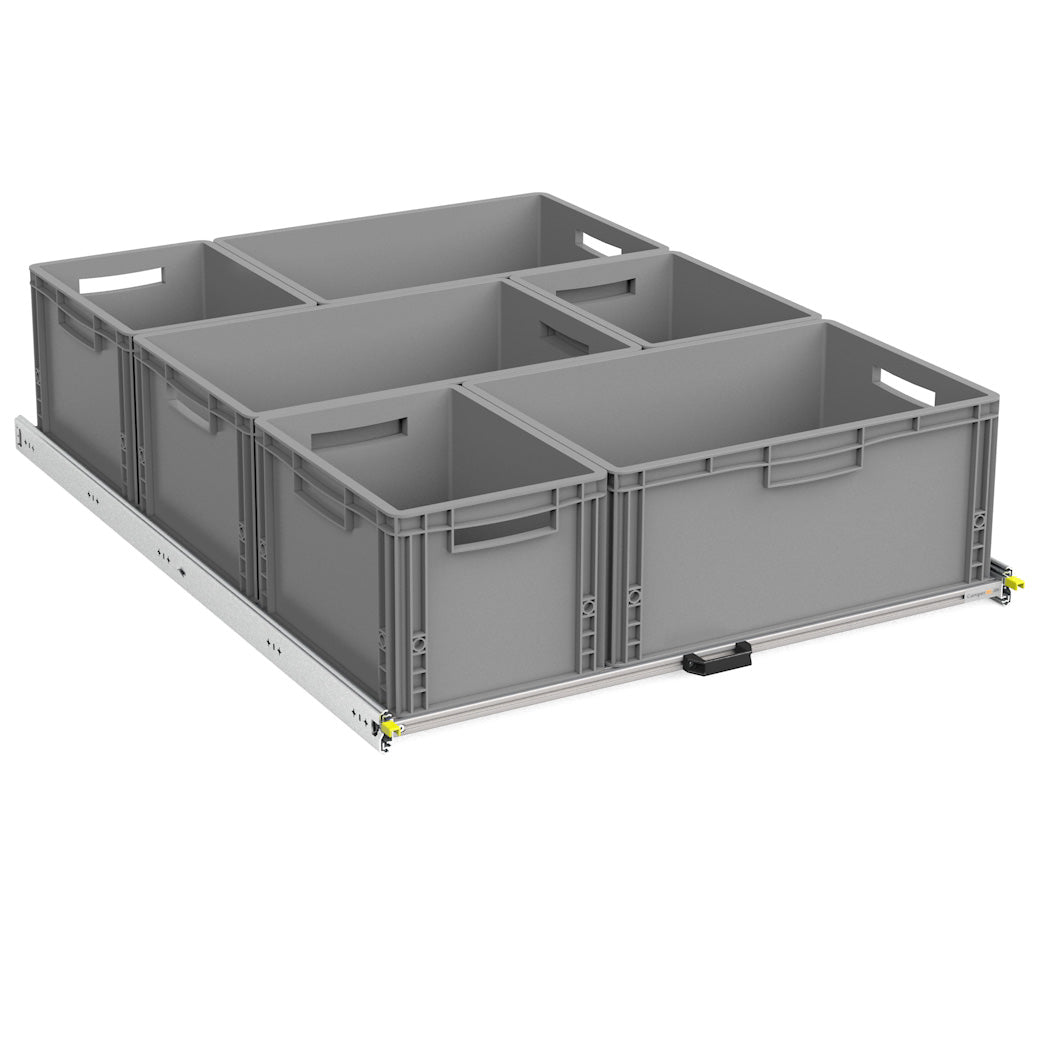

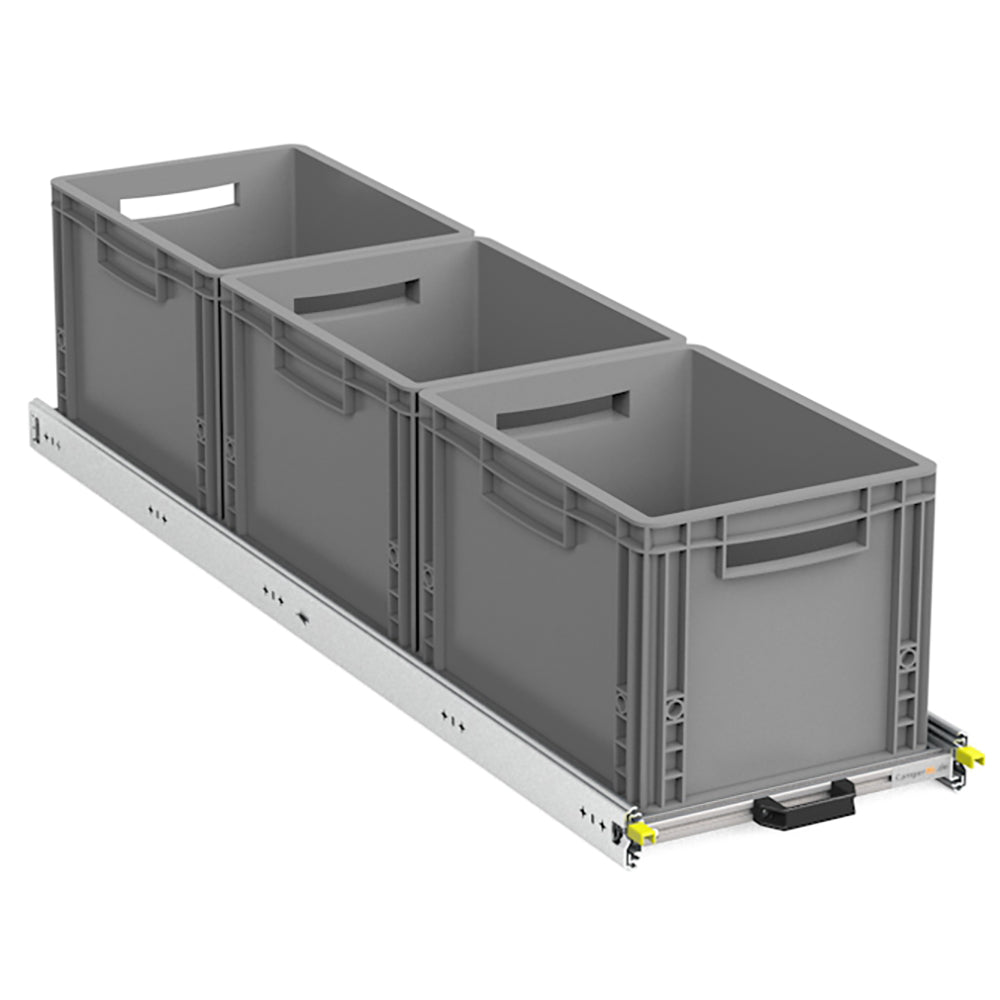

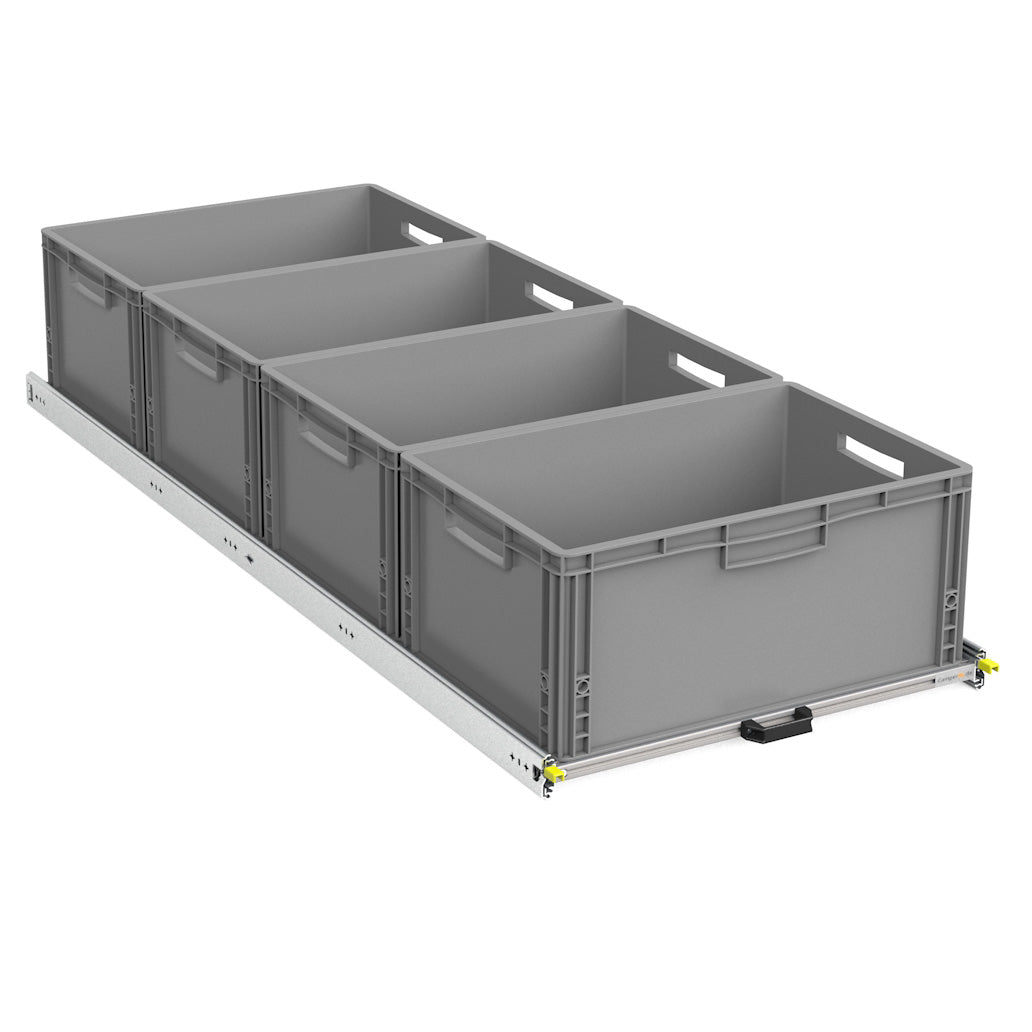

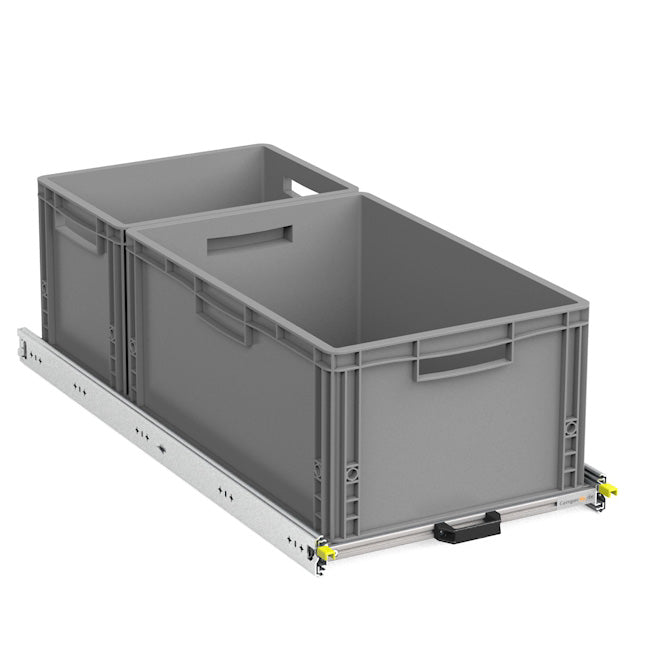

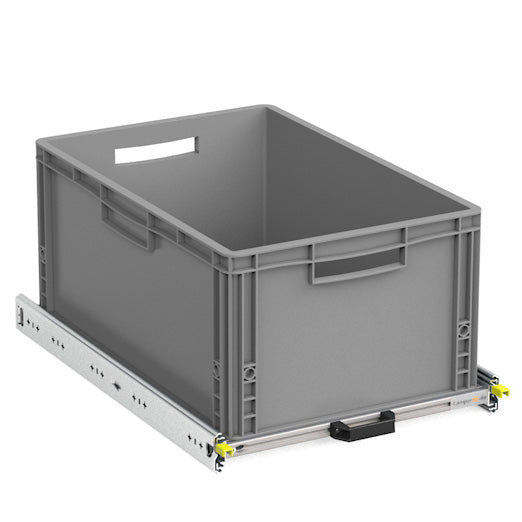

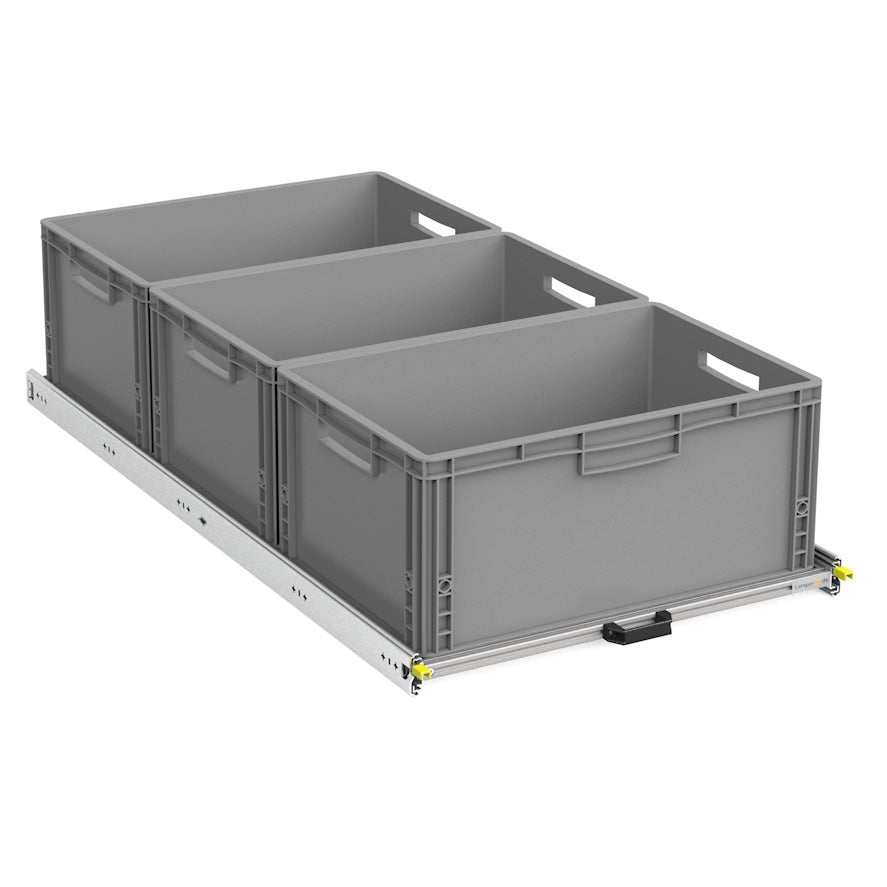

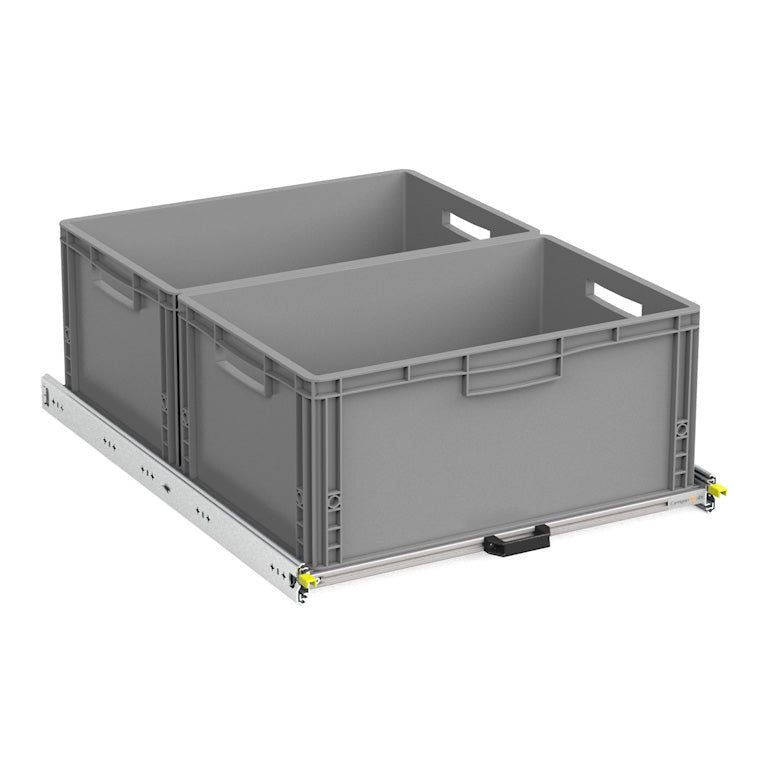

DIY rear pull-out Eurobox variants XS-XXL 400mm-1800mm

Rear Extension Eurobox for Camper & Motorhome & Vanlife | Heavy-Duty Extension Set with Aluminum Profiles

Scope of Delivery

Included in the set:

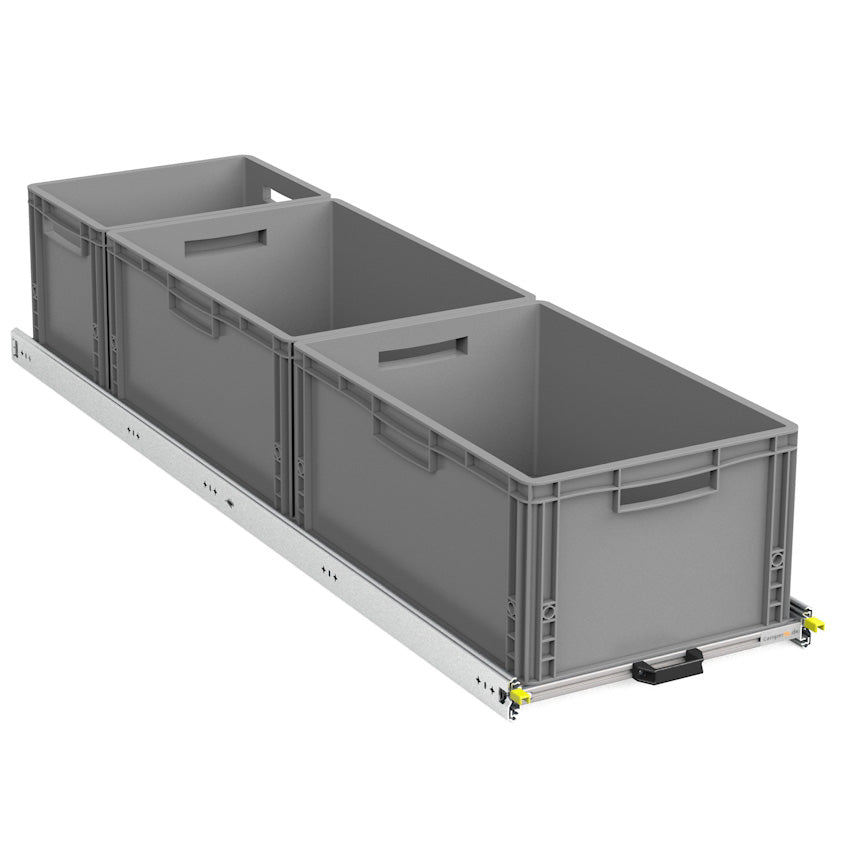

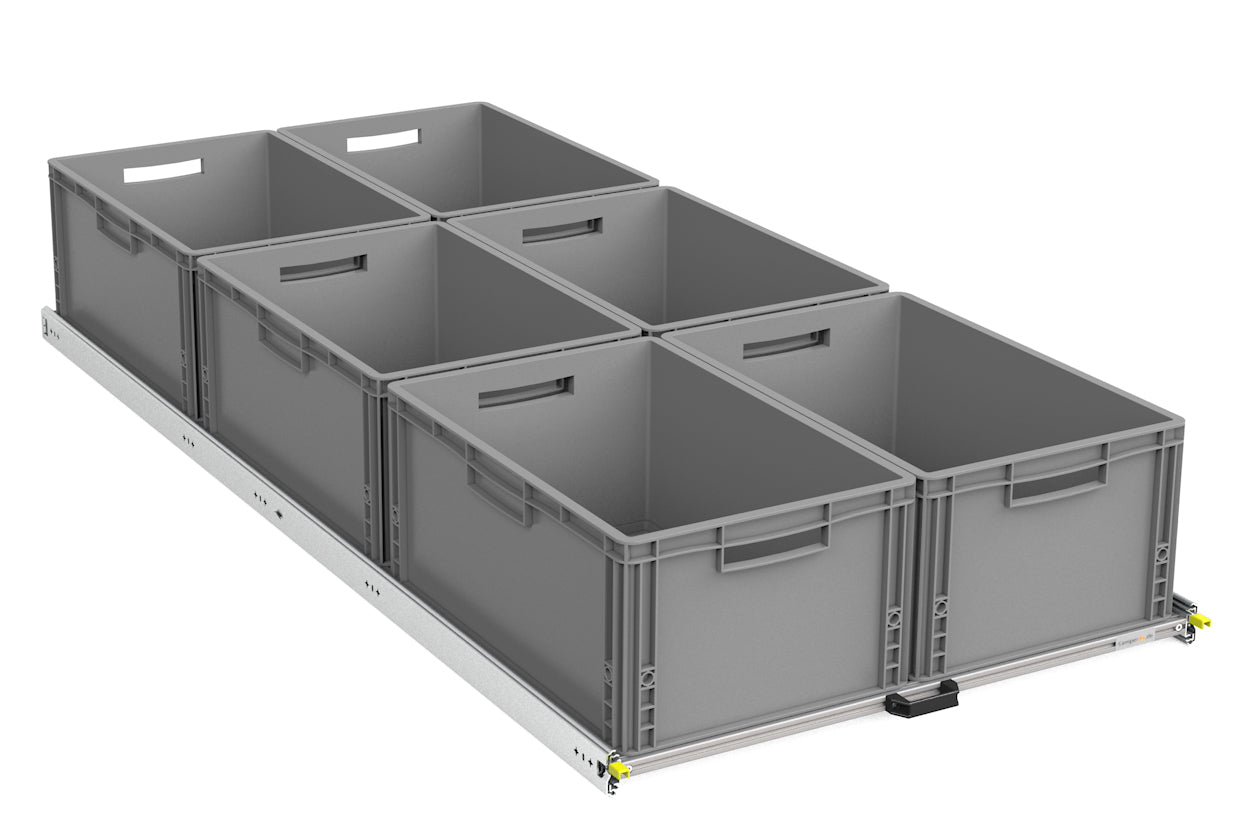

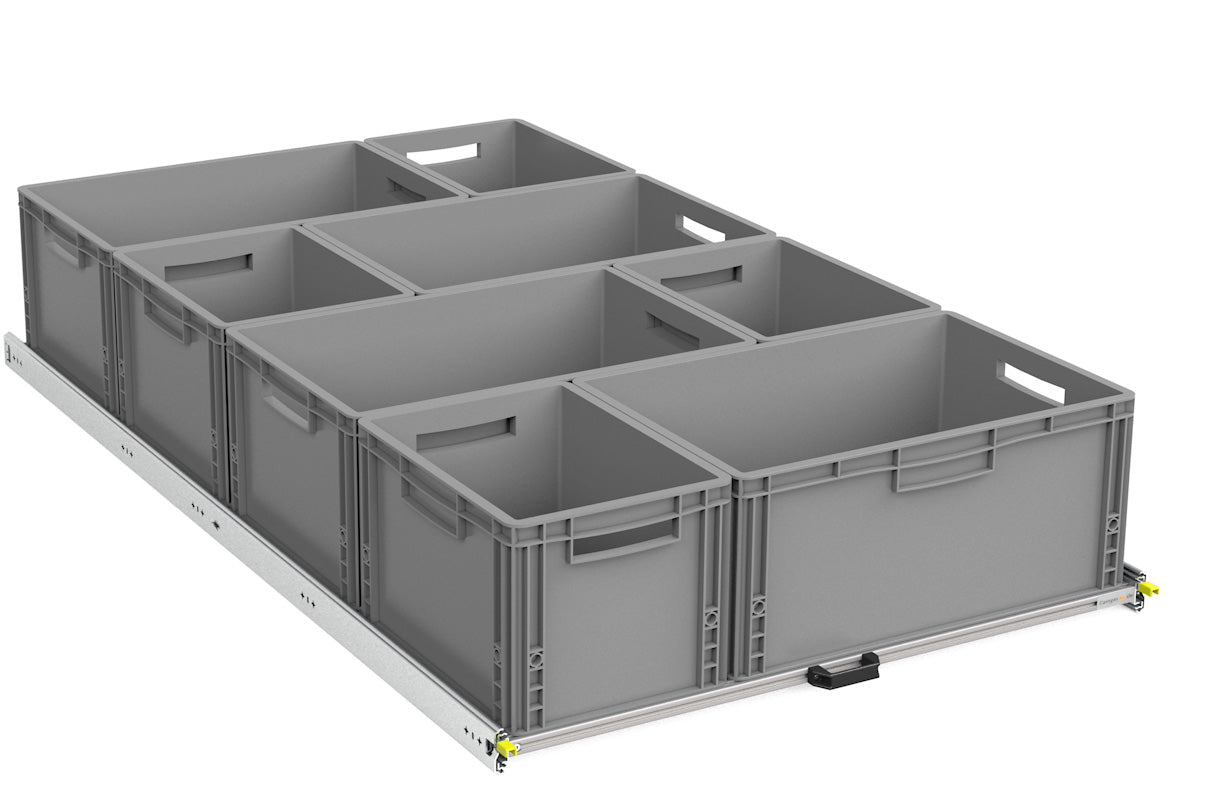

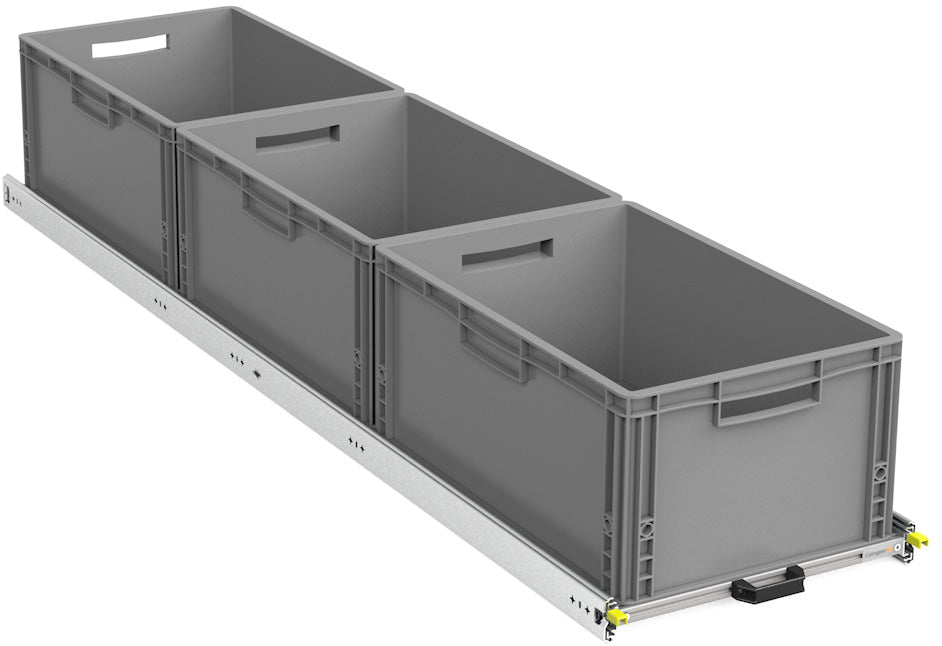

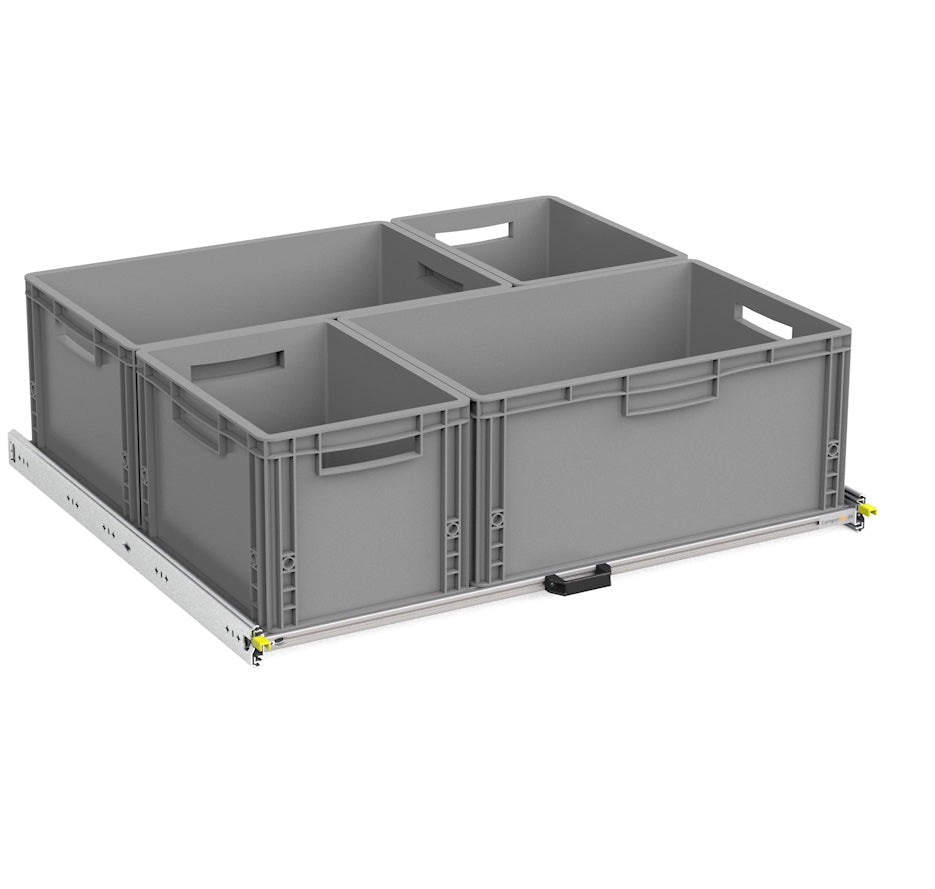

1 pair of heavy-duty extensions (left/right)

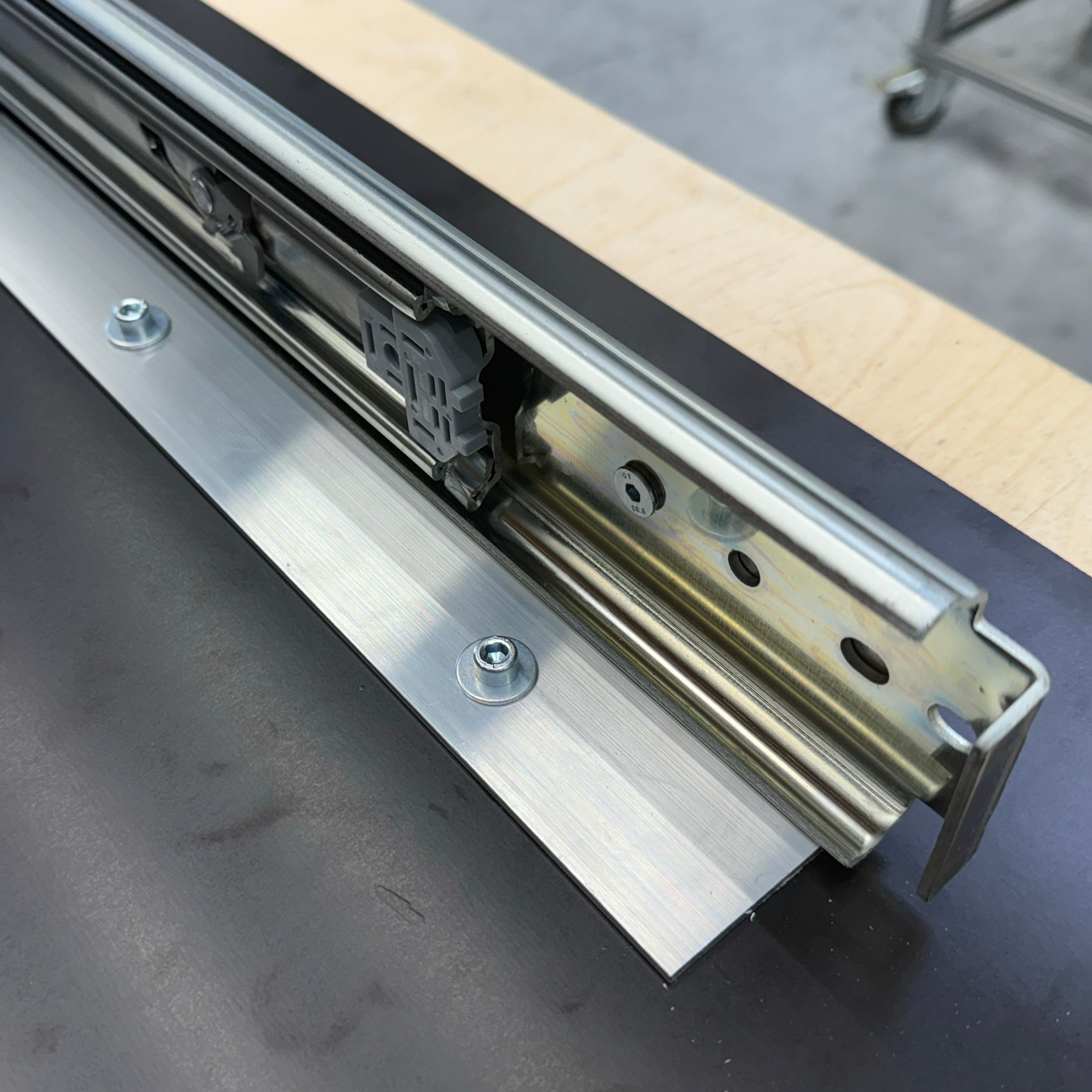

Aluminum profiles 20x20 mm, groove 6 – precisely cut, drilled, and threaded
Handle including mounting hardware
Screws and T-nuts for mounting the extension

Note: Euroboxes as well as mounting materials for attachment to wall or floor are not included in the delivery.

Technical Details of the Heavy-Duty Extensions

All extensions are ball-bearing guided, designed as full extensions, and tested for 50,000 cycles. The load capacity refers to the shortest version (400 mm). For longer extensions, the load capacity decreases accordingly.

Variant	Dimensions (H x W)	Load capacity at 400 mm	Load capacity at 1200 mm	Weight at 1200 mm (per pair)	Special Features
100 kg – 53 mm	53 x 19 mm	100 kg	approx. 60 kg	approx. 6 kg	Ideal for short extensions and single-row loading
130 kg – 57 mm	57 x 19 mm	130 kg	approx. 90 kg	approx. 7 kg	Balanced ratio of weight and stability
220 kg – 76 mm	76 x 19 mm	220 kg	approx. 150 kg	approx. 12 kg	Suitable for long extensions over 1200 mm or large spans

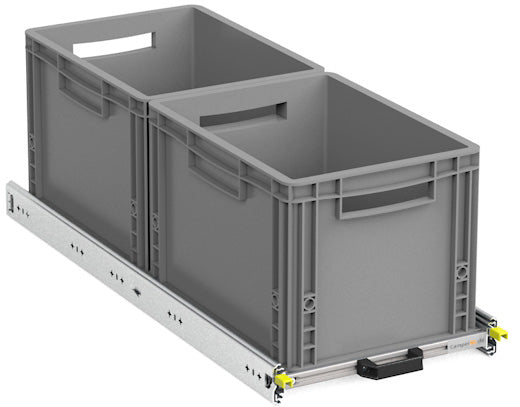

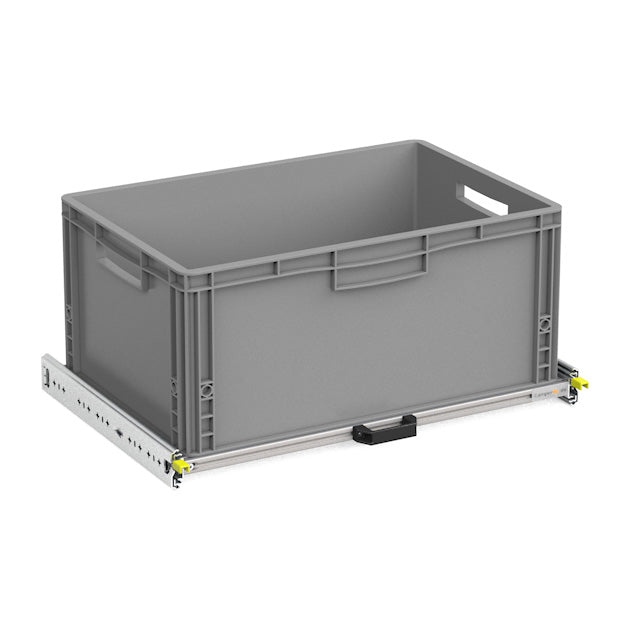

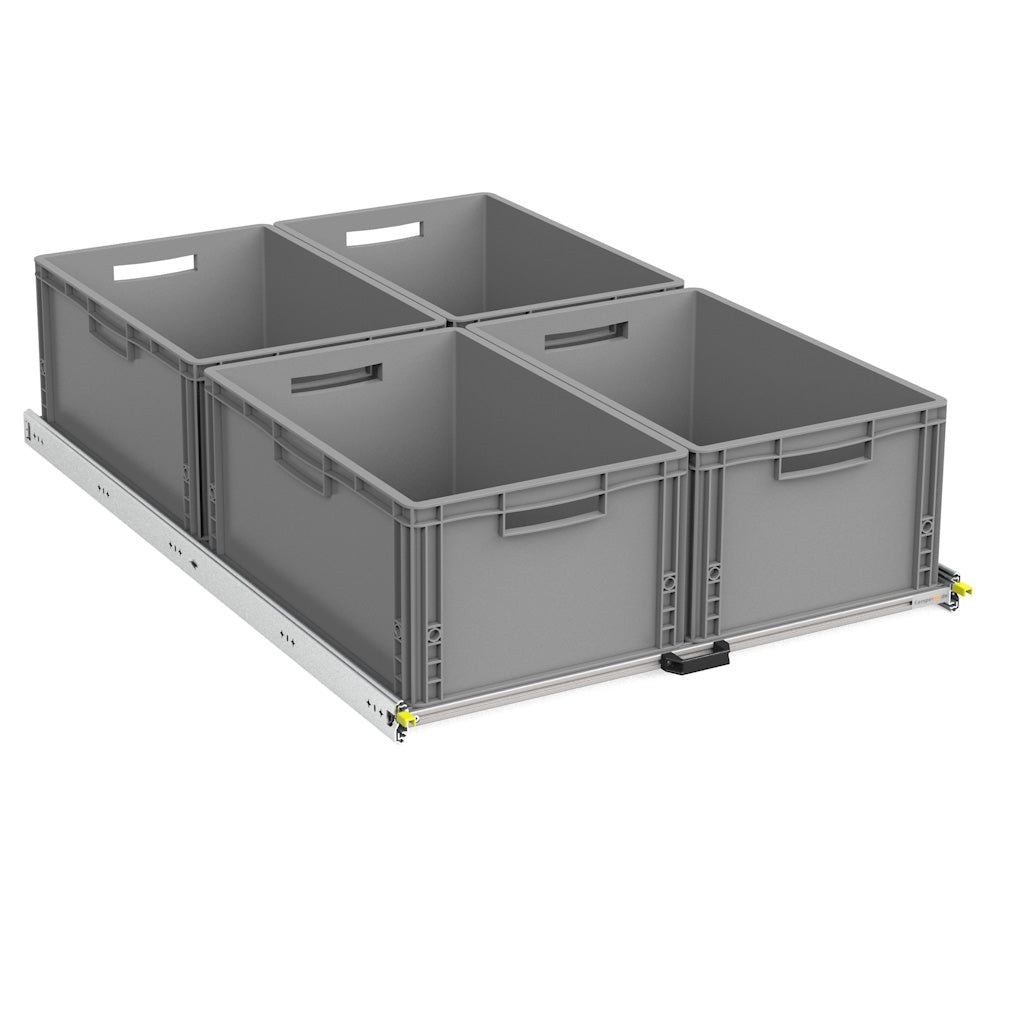

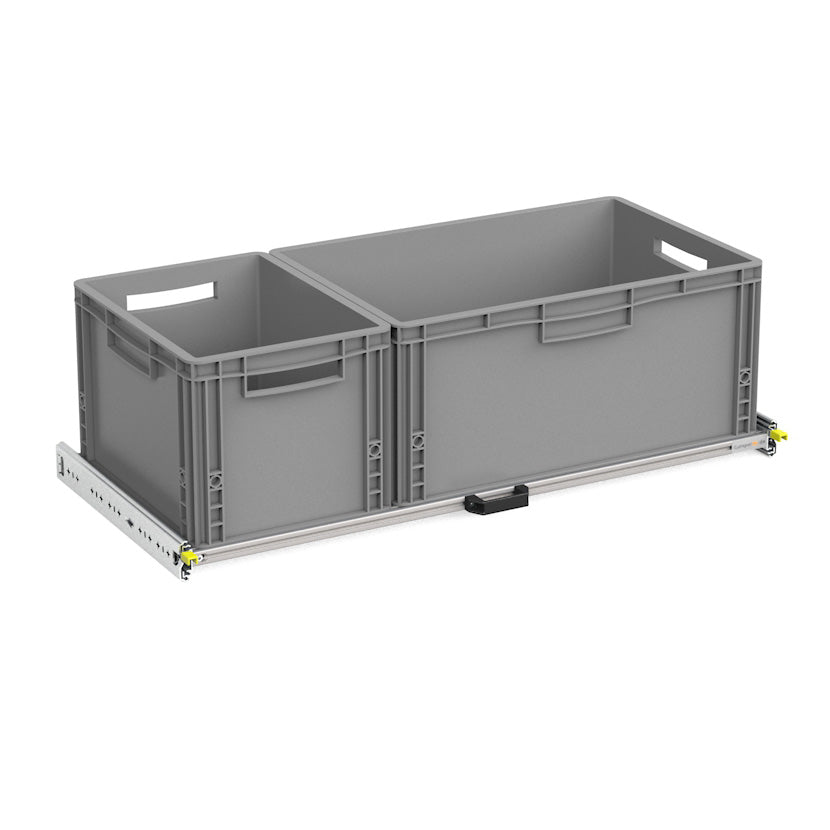

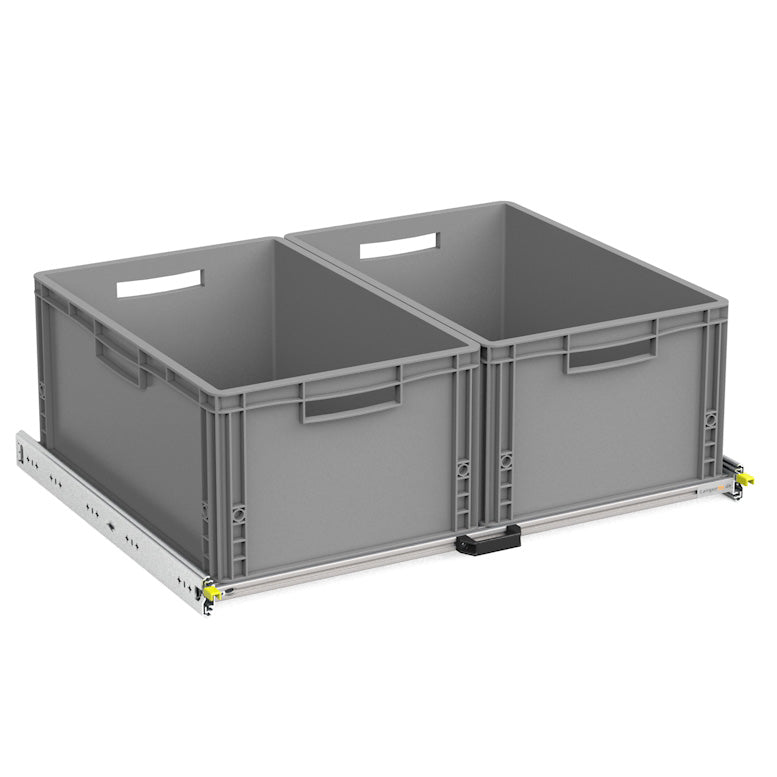

Carriage for Euroboxes

Made from high-quality 20x20 mm aluminum profiles
Connections with M6x30 cylinder head screws
Cut to size on RAPID underfloor miter saw with digital positioning
Drillings by automated system with high precision (0.1 mm range)
Precisely fitting and stable connections

Assembly and Construction

Easy assembly in about 10 minutes
Extensions are attached to the carriage with T-nuts profile 6/M5 and M5x8 screws
Handle is mounted in the same way
Color illustrated step-by-step instructions included

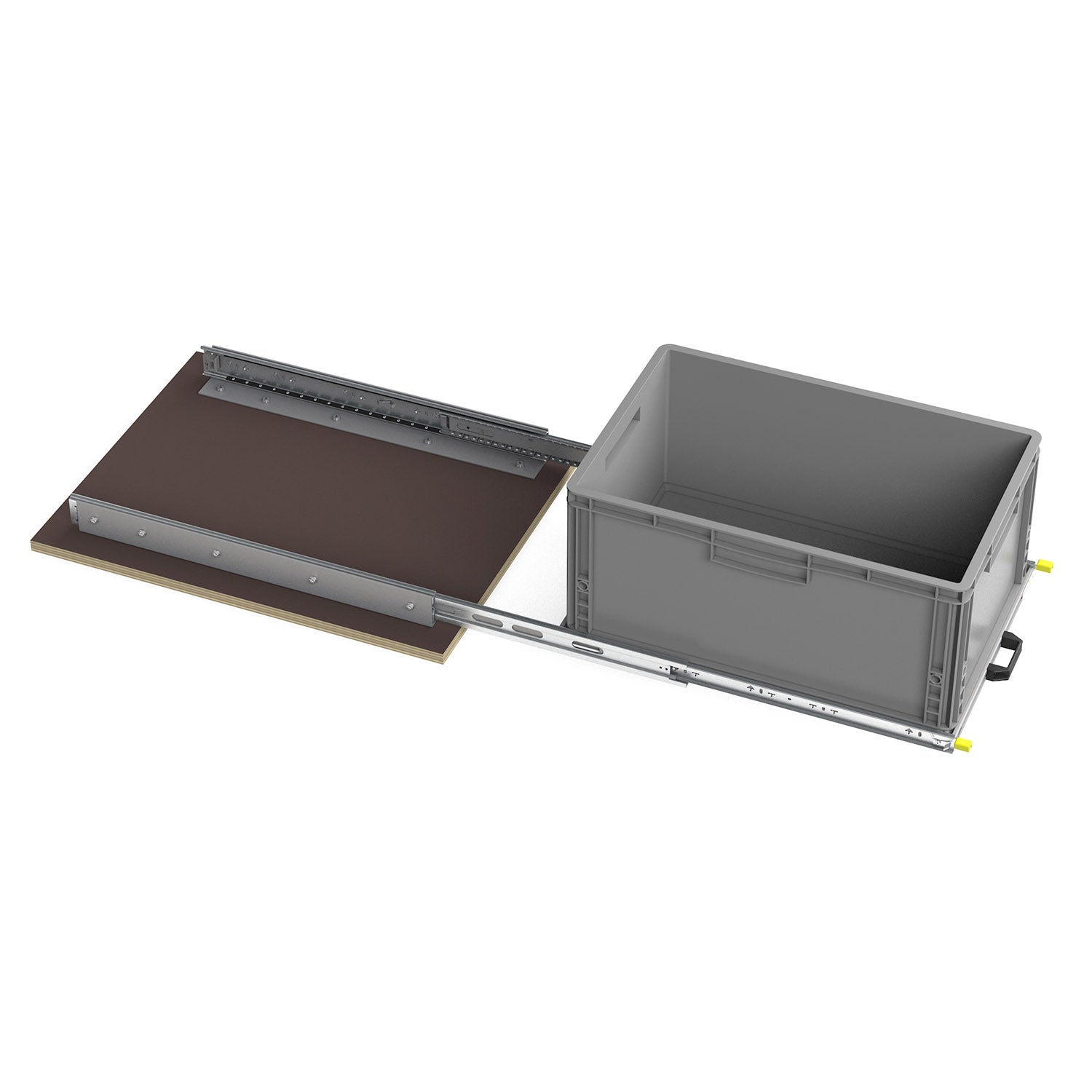

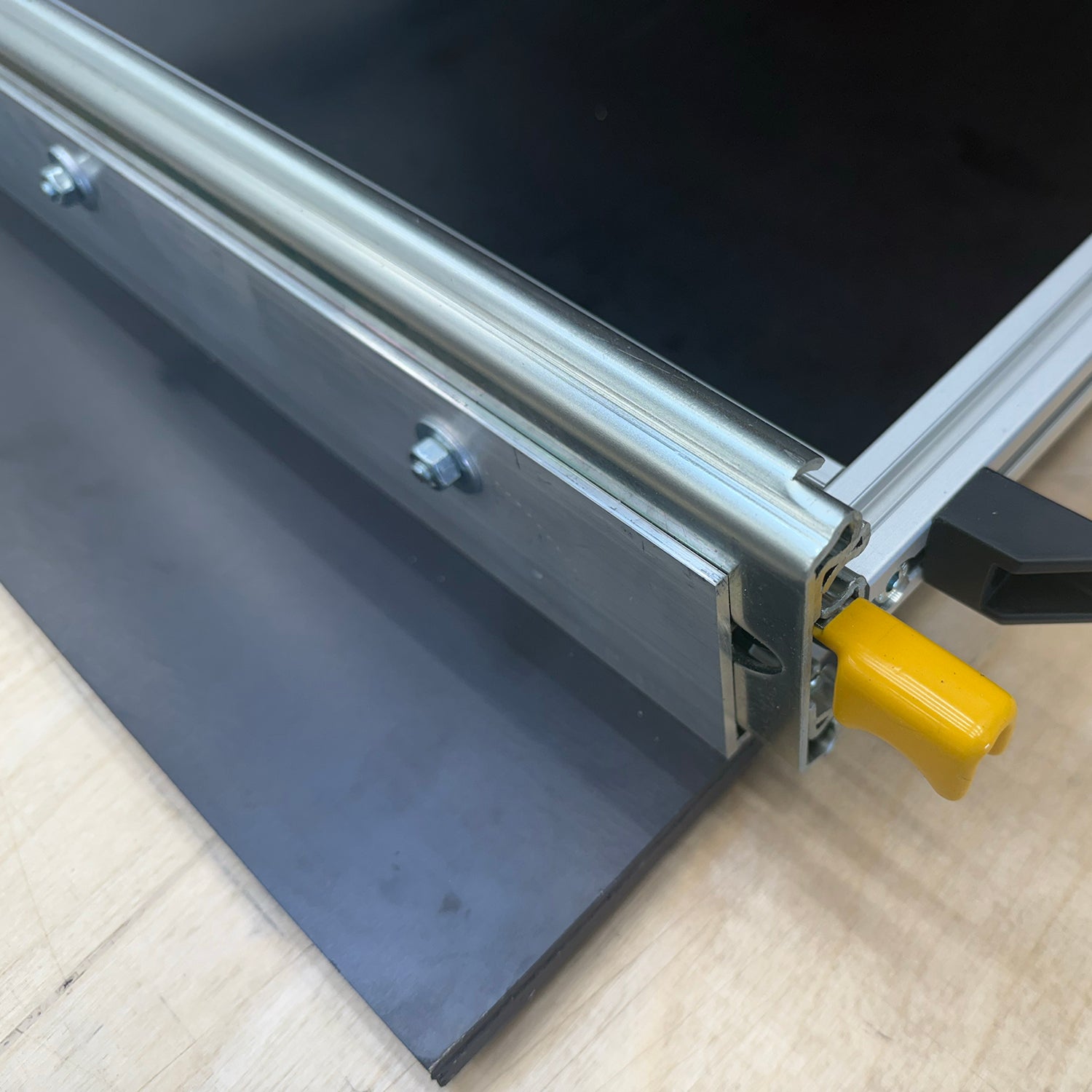

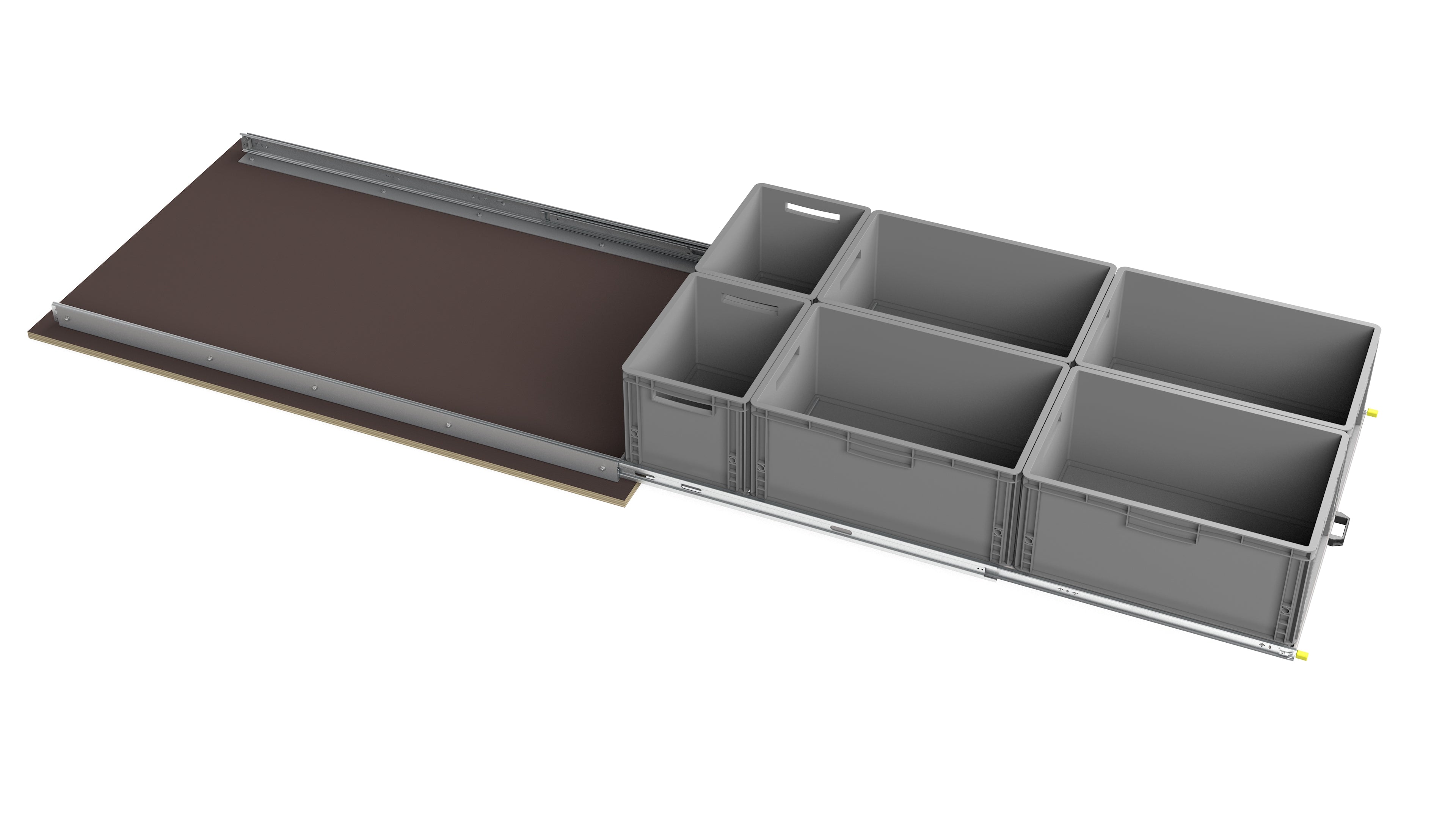

The extension is designed for DIY self-installation. Mounting can be done directly through the existing holes on the wall or with brackets on the floor.

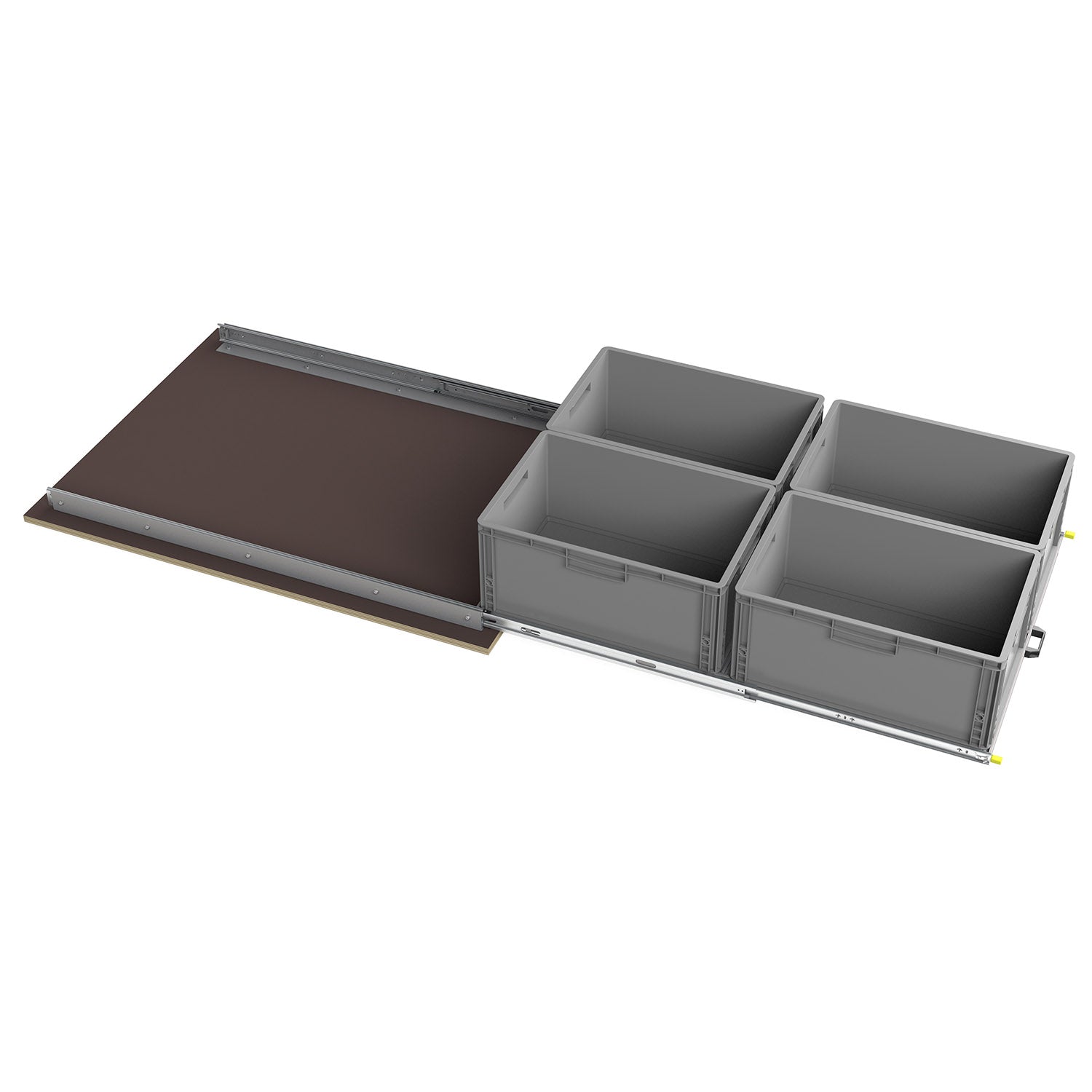

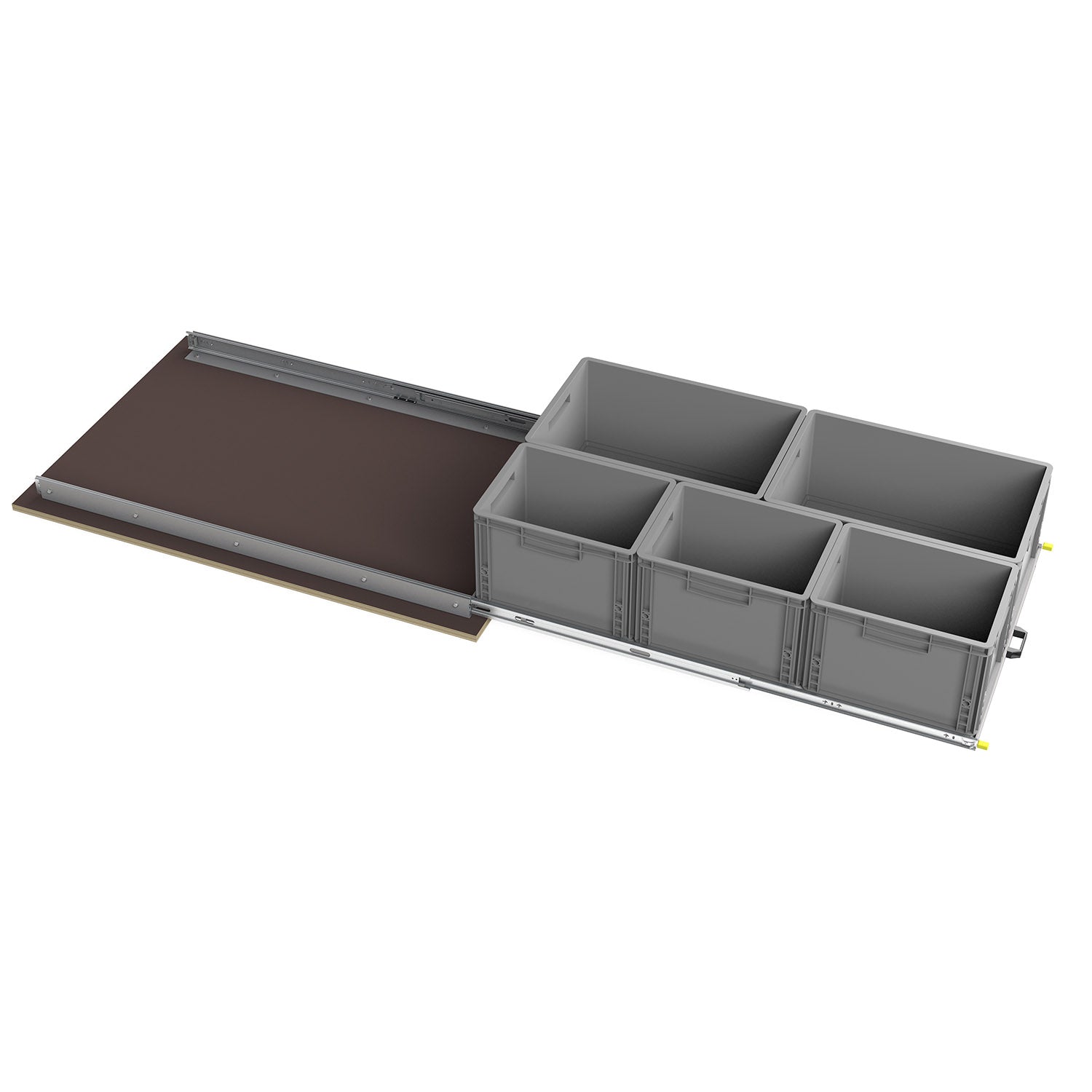

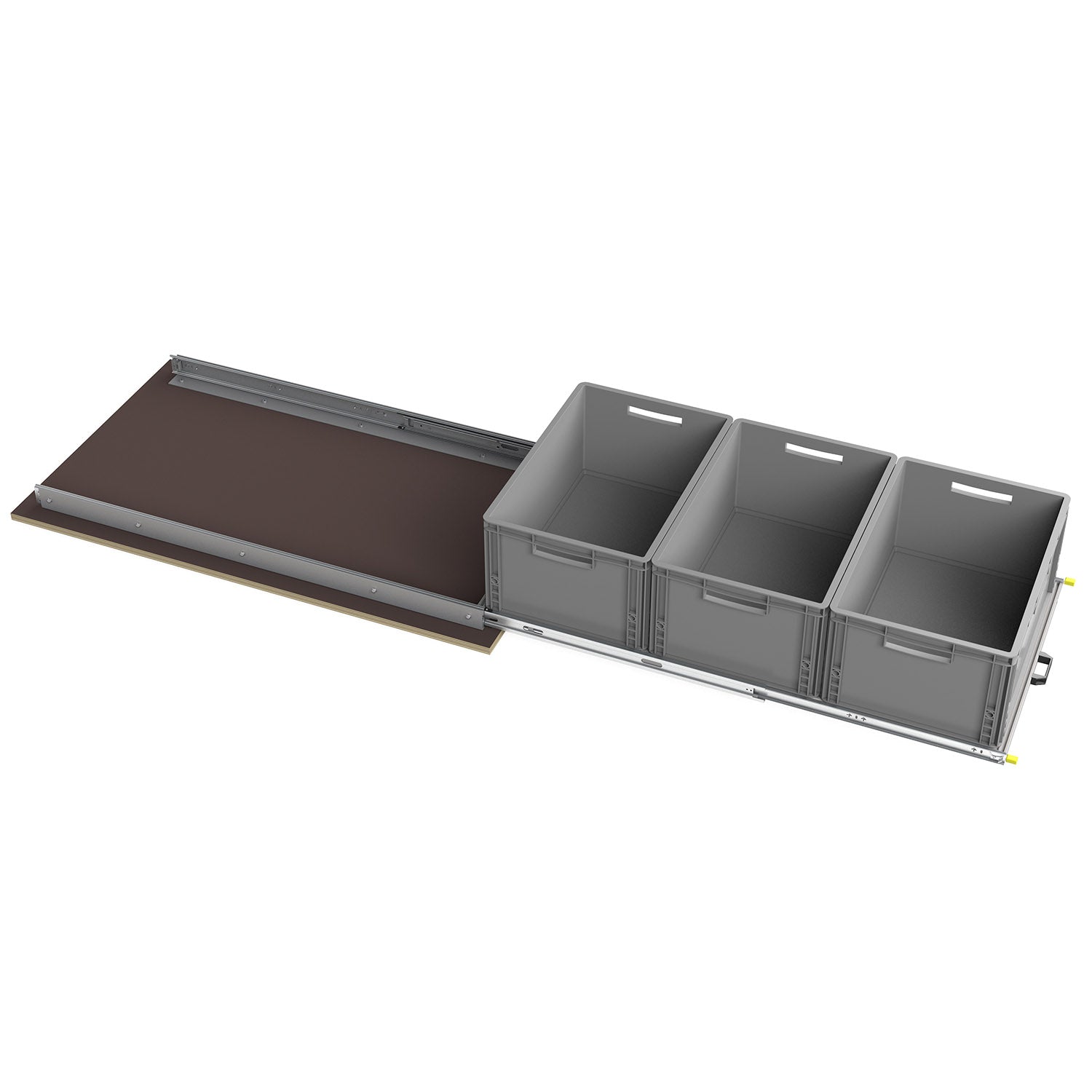

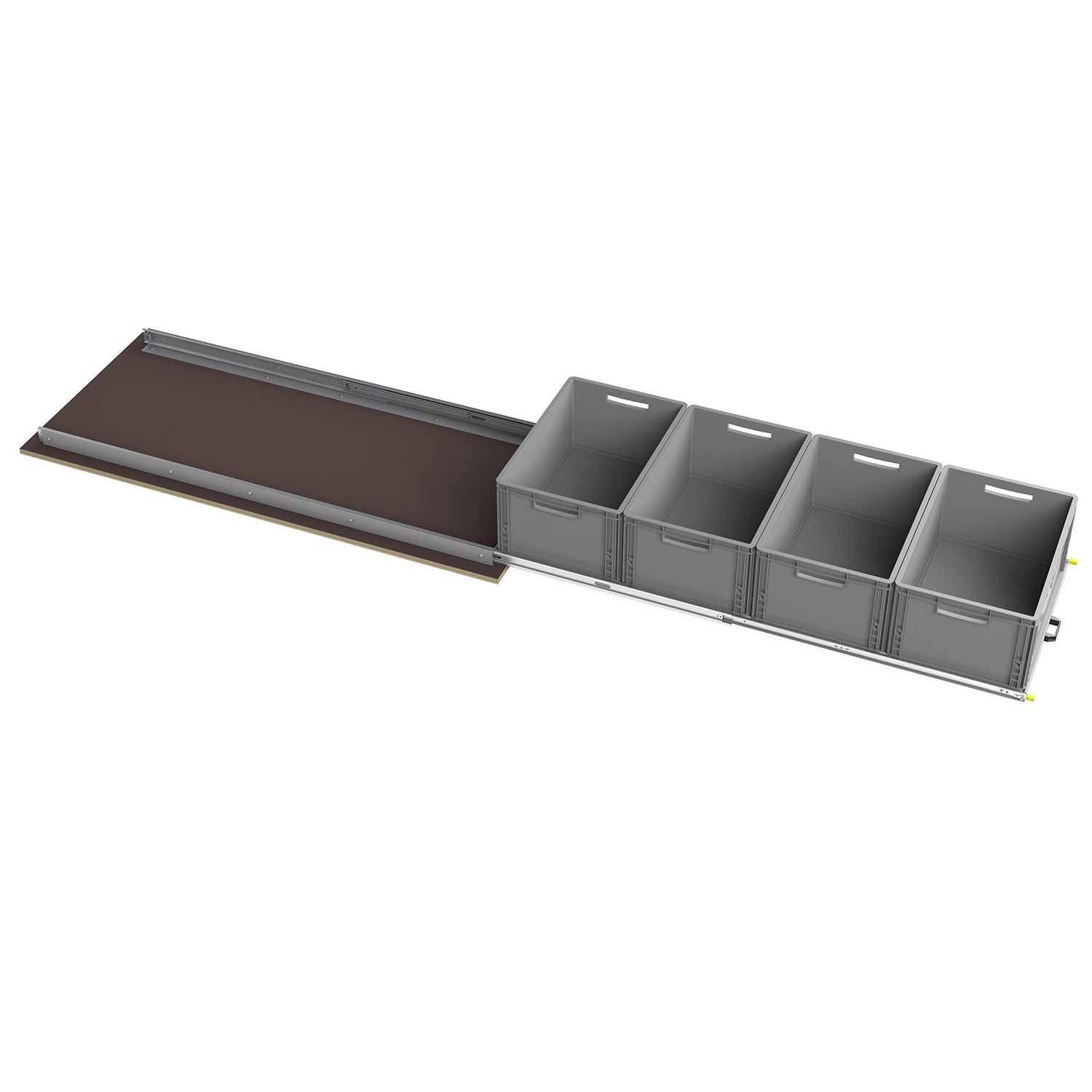

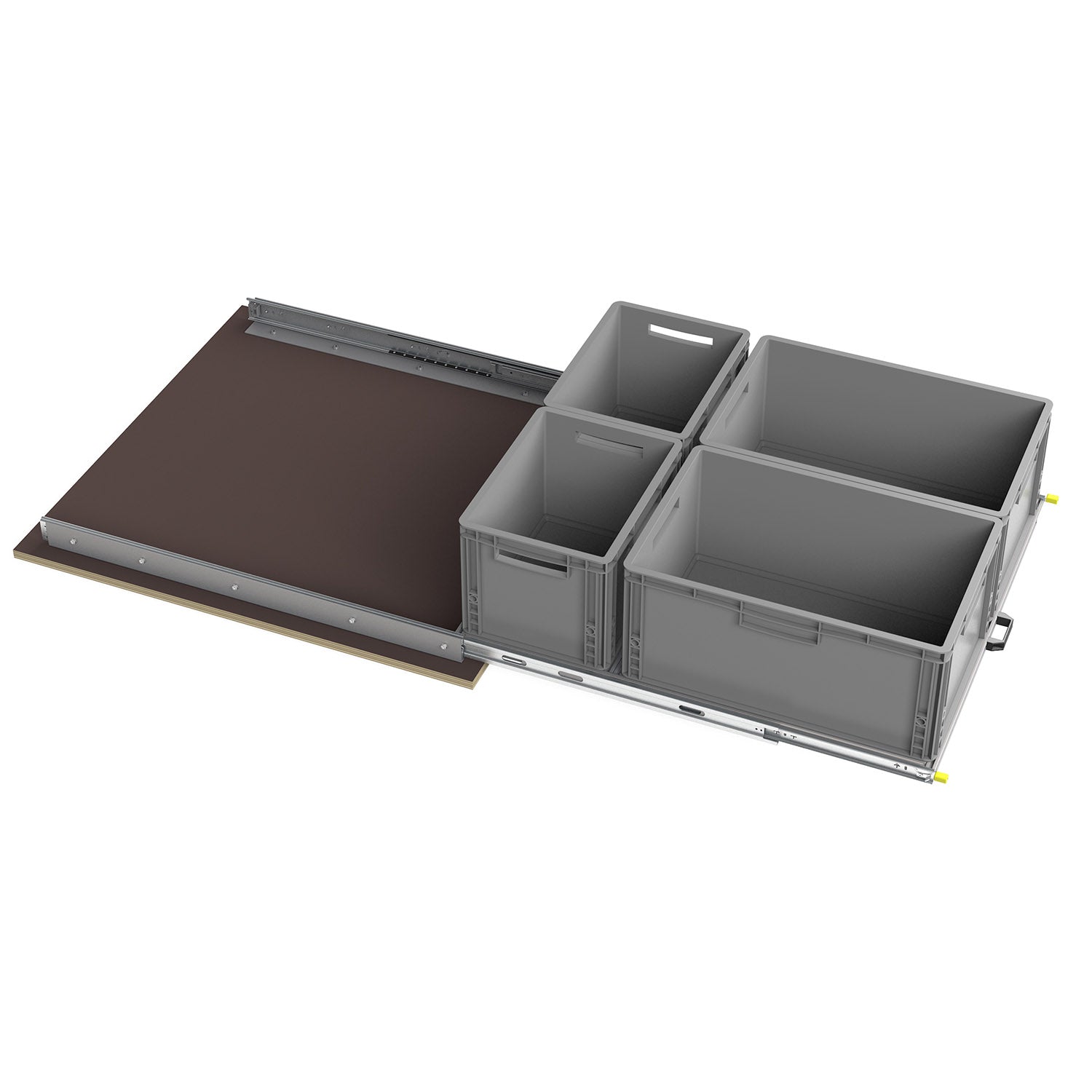

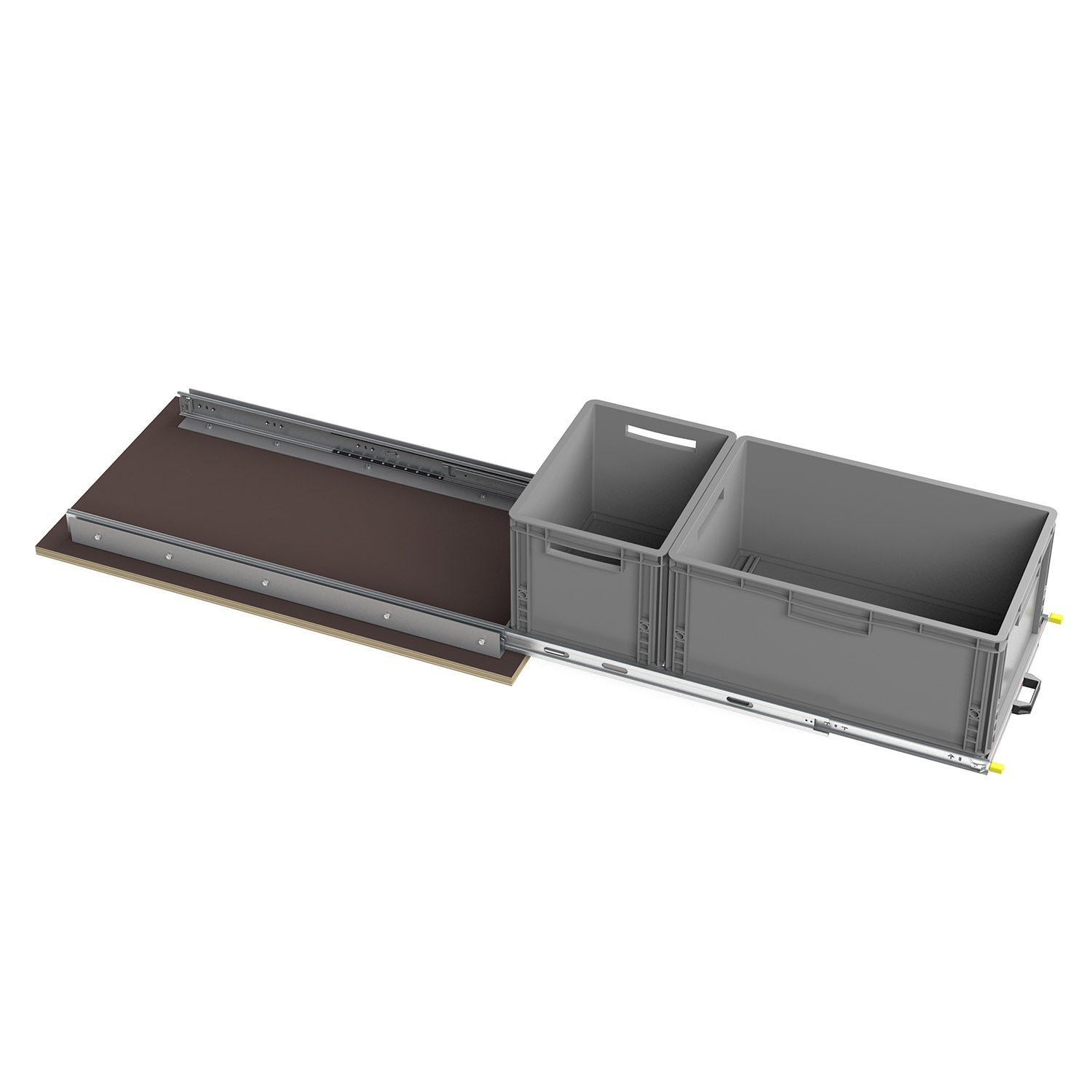

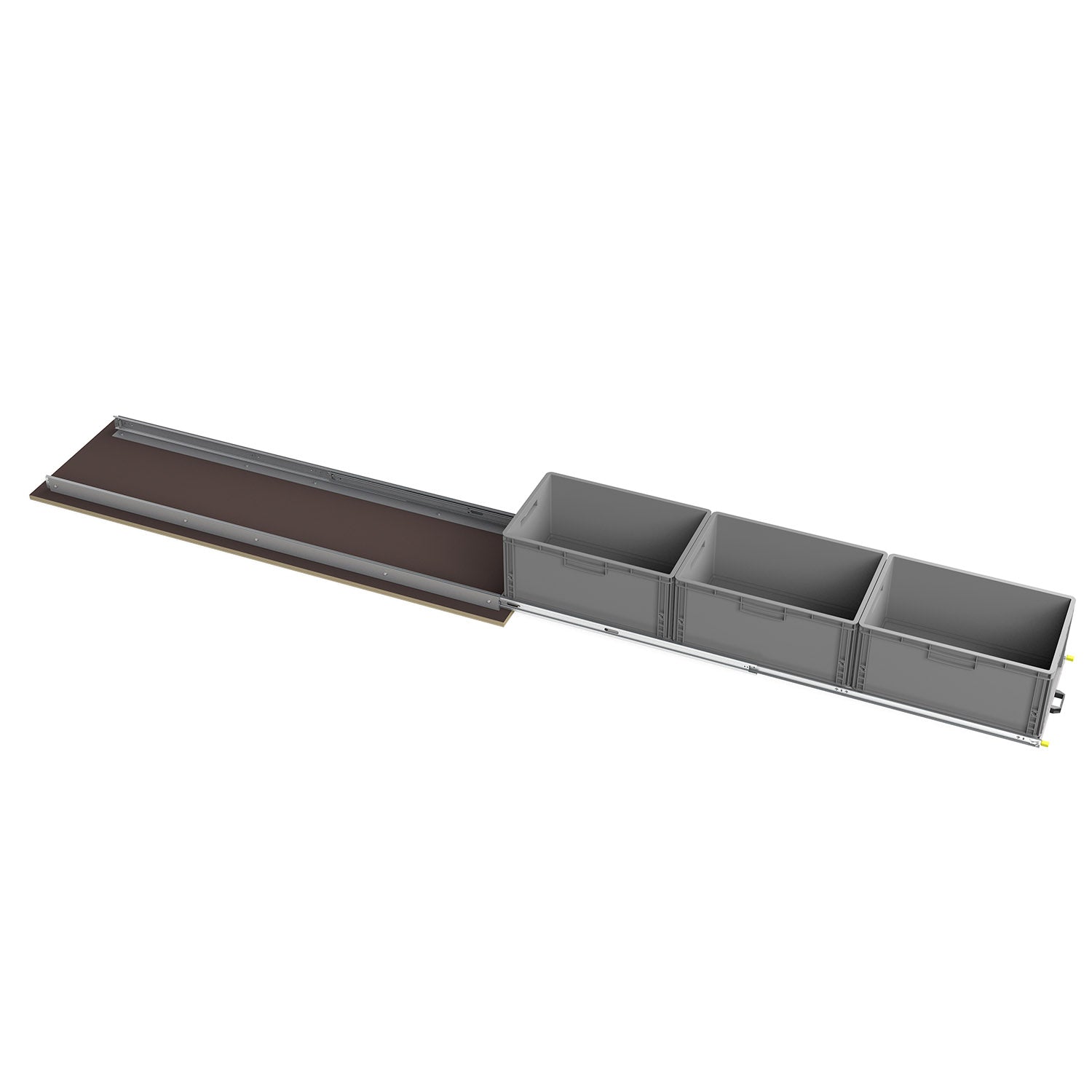

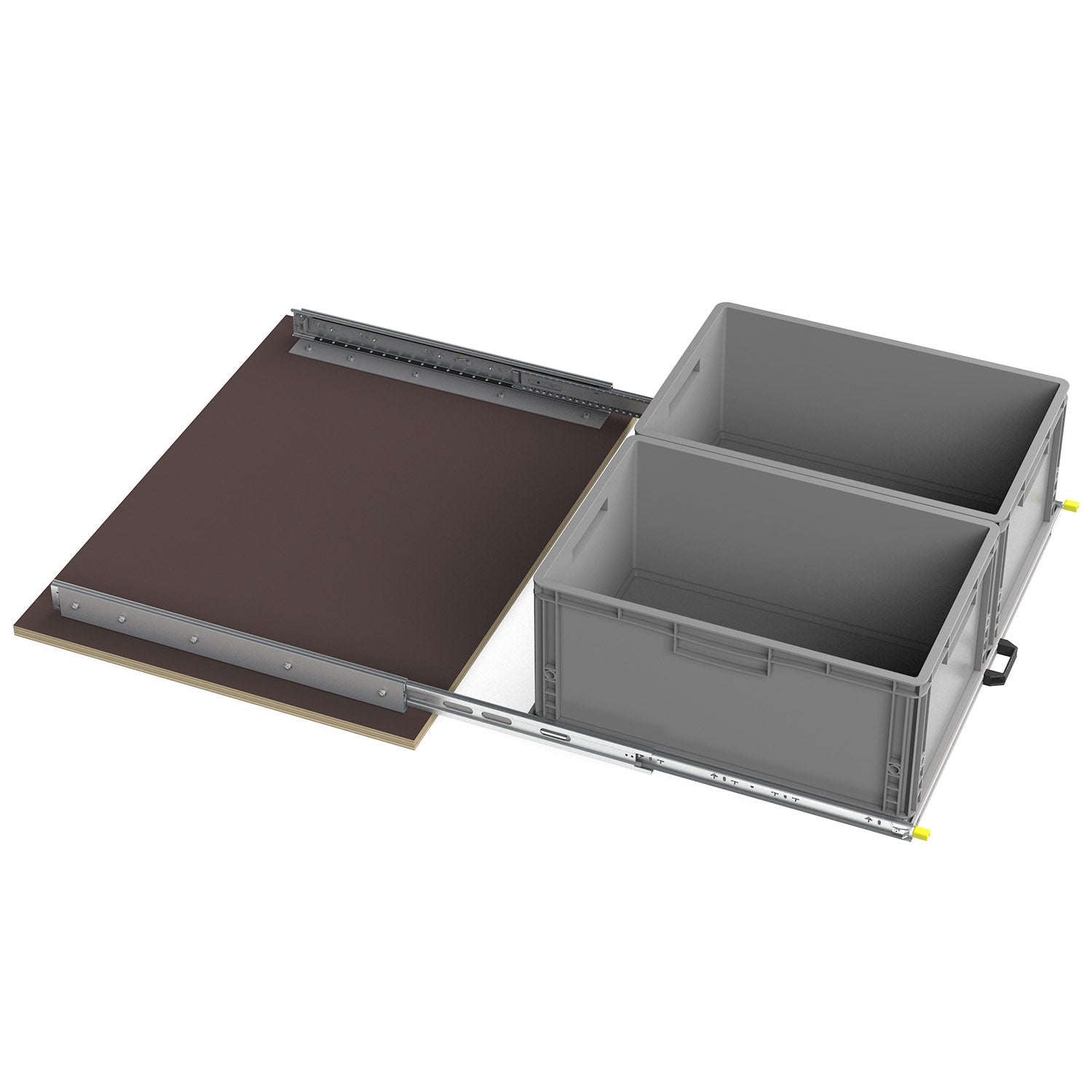

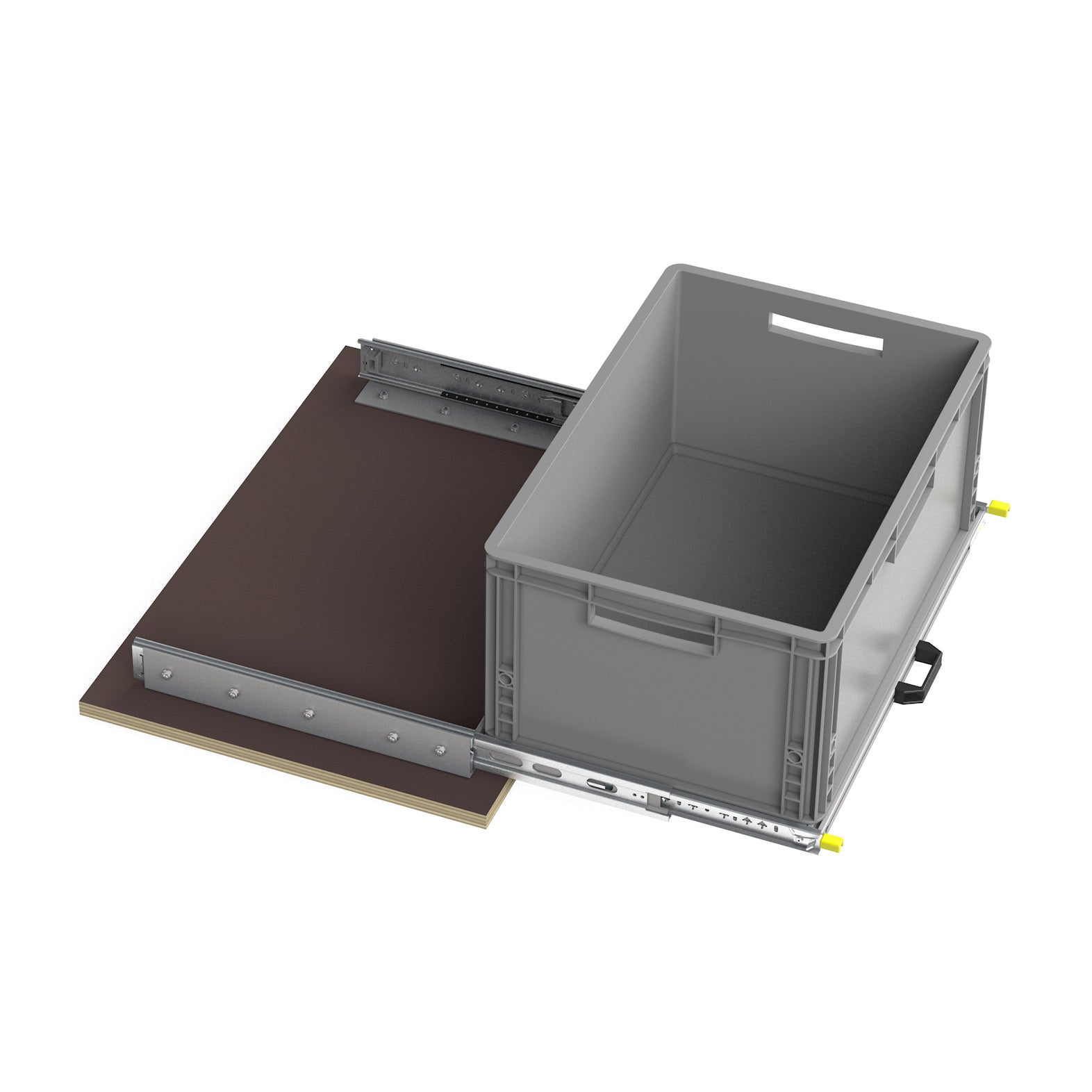

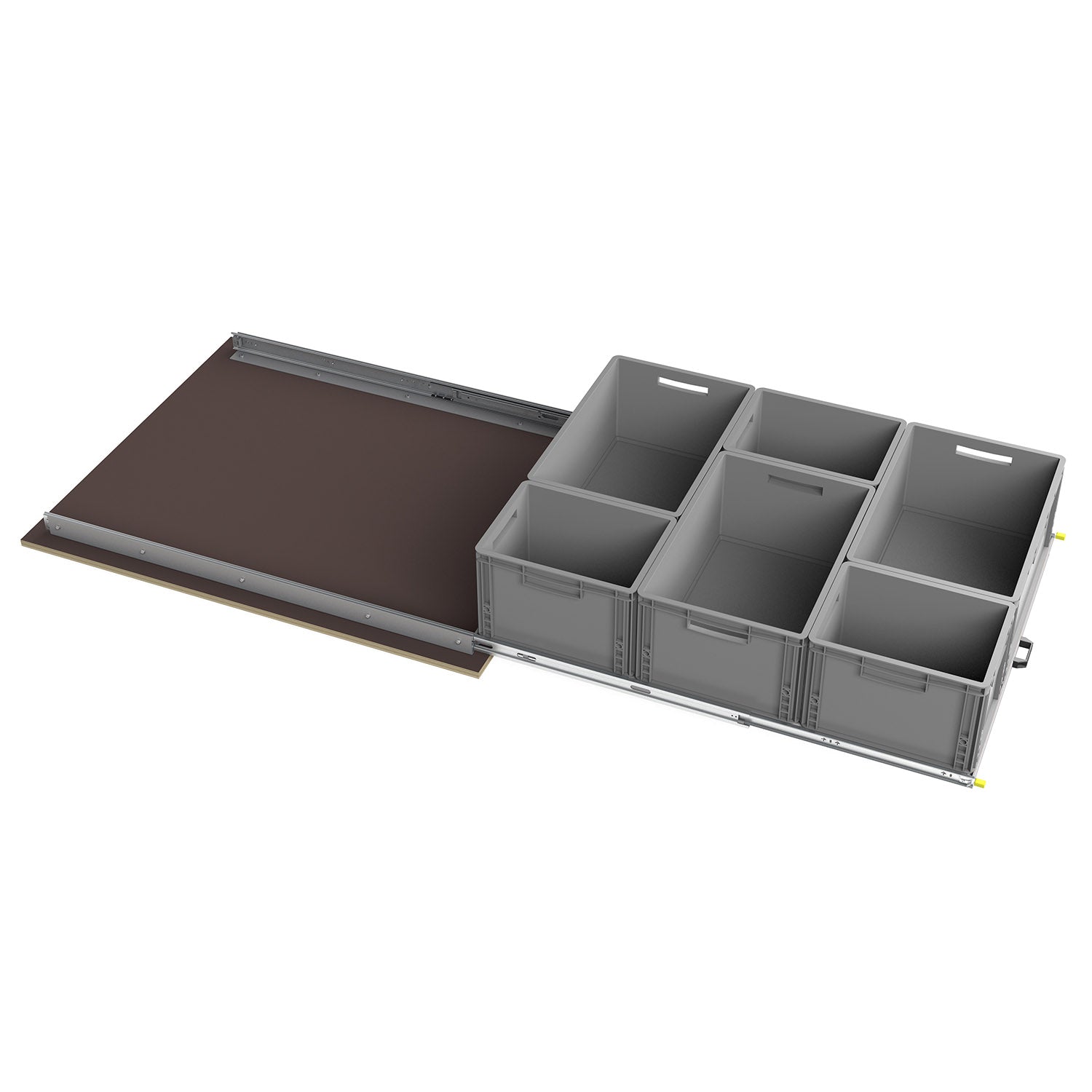

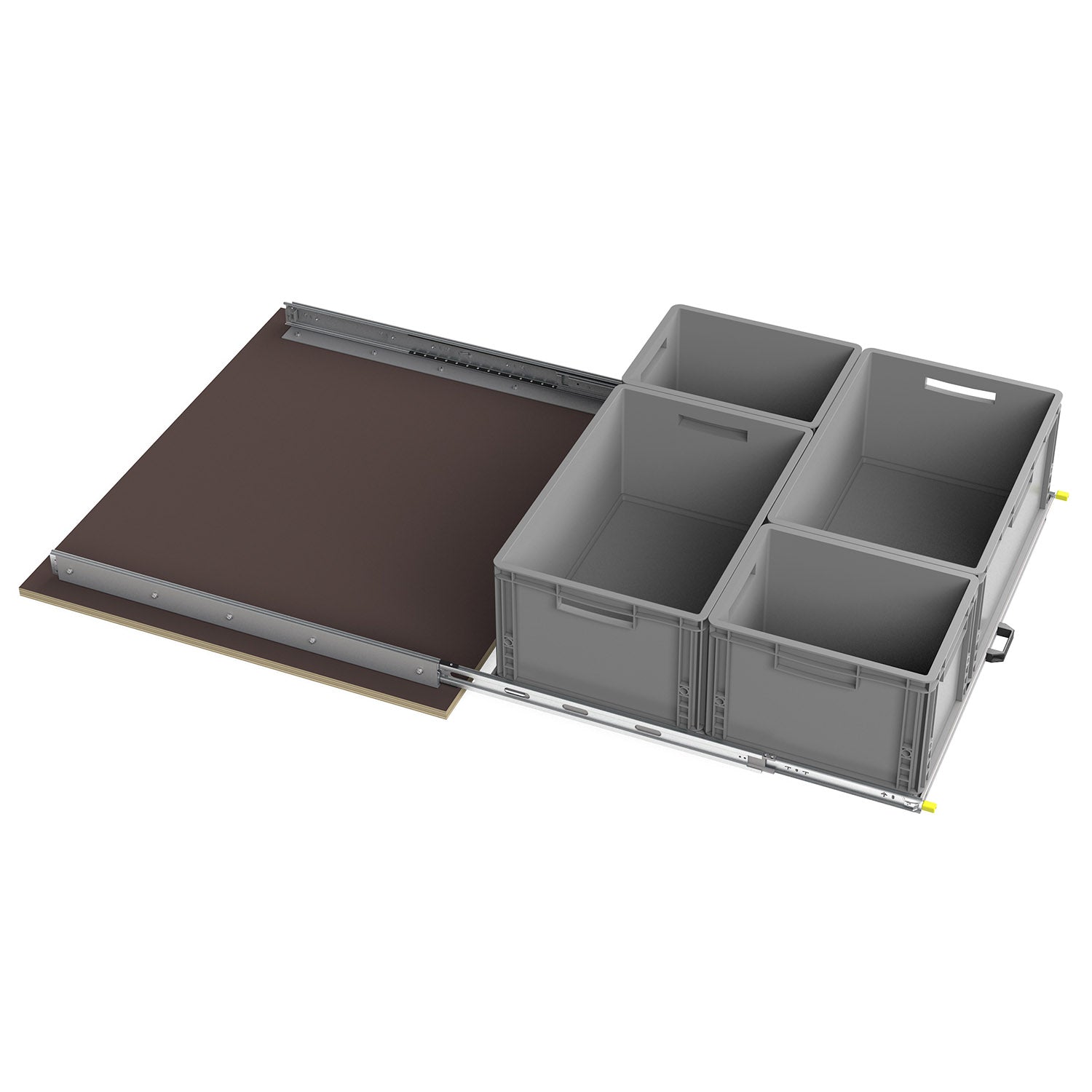

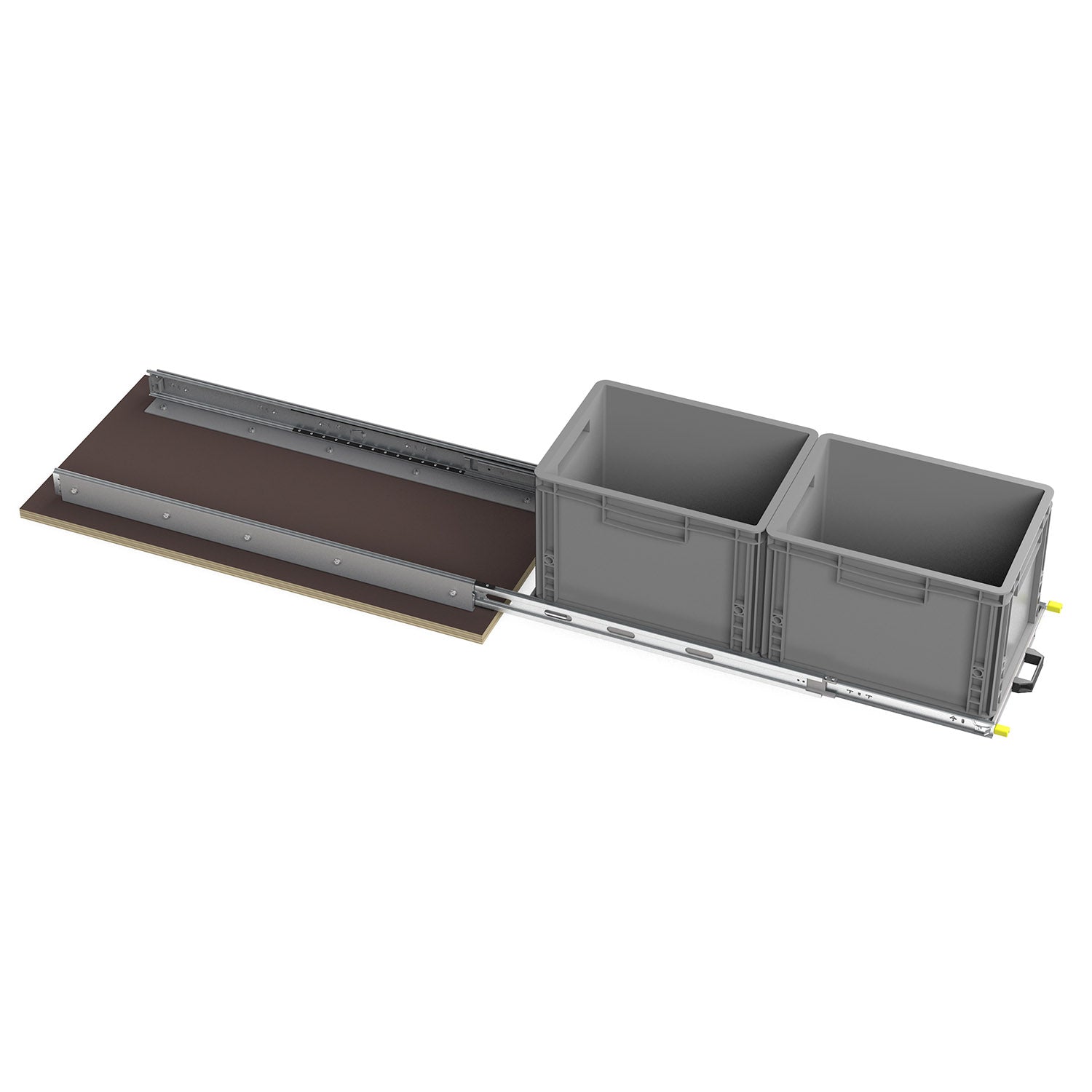

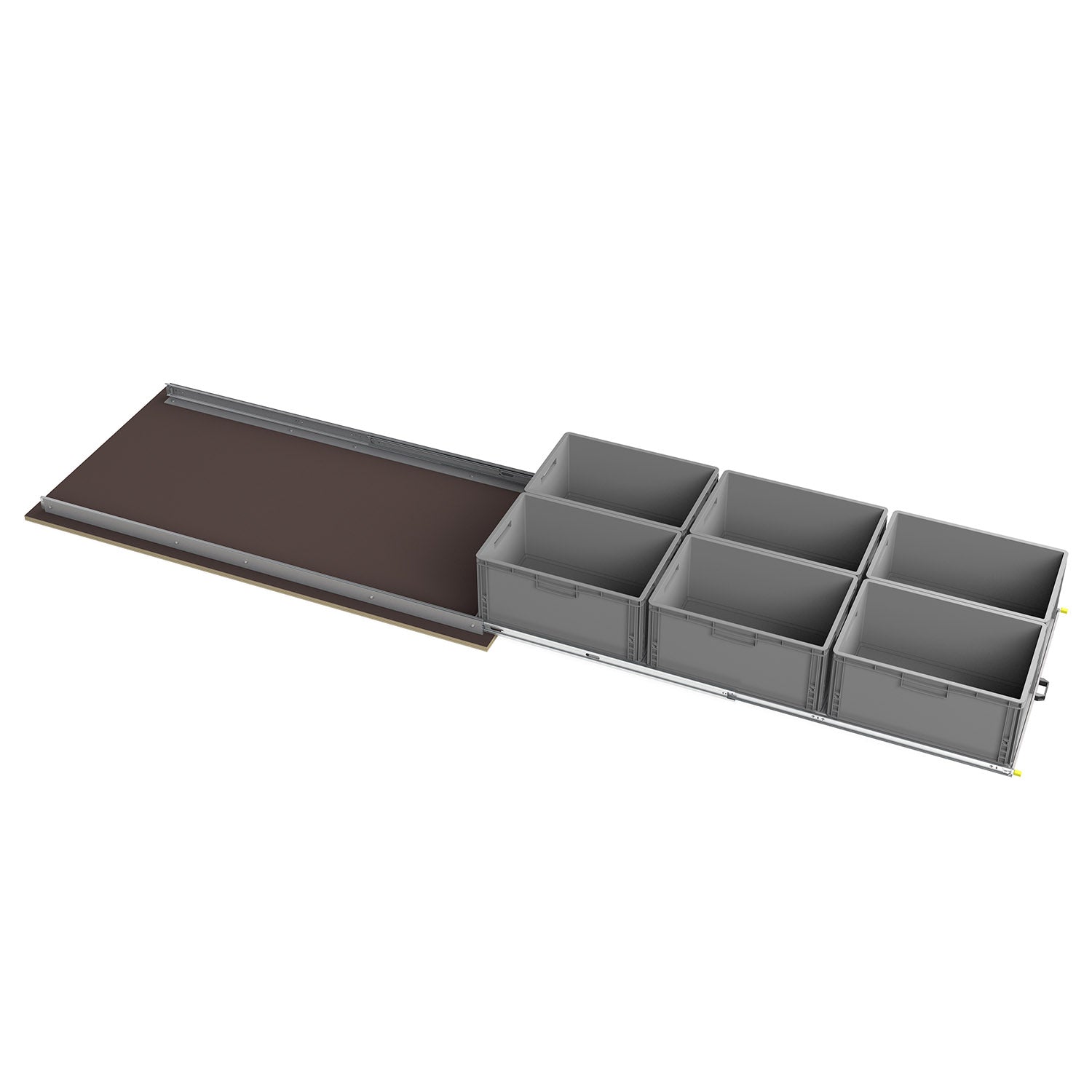

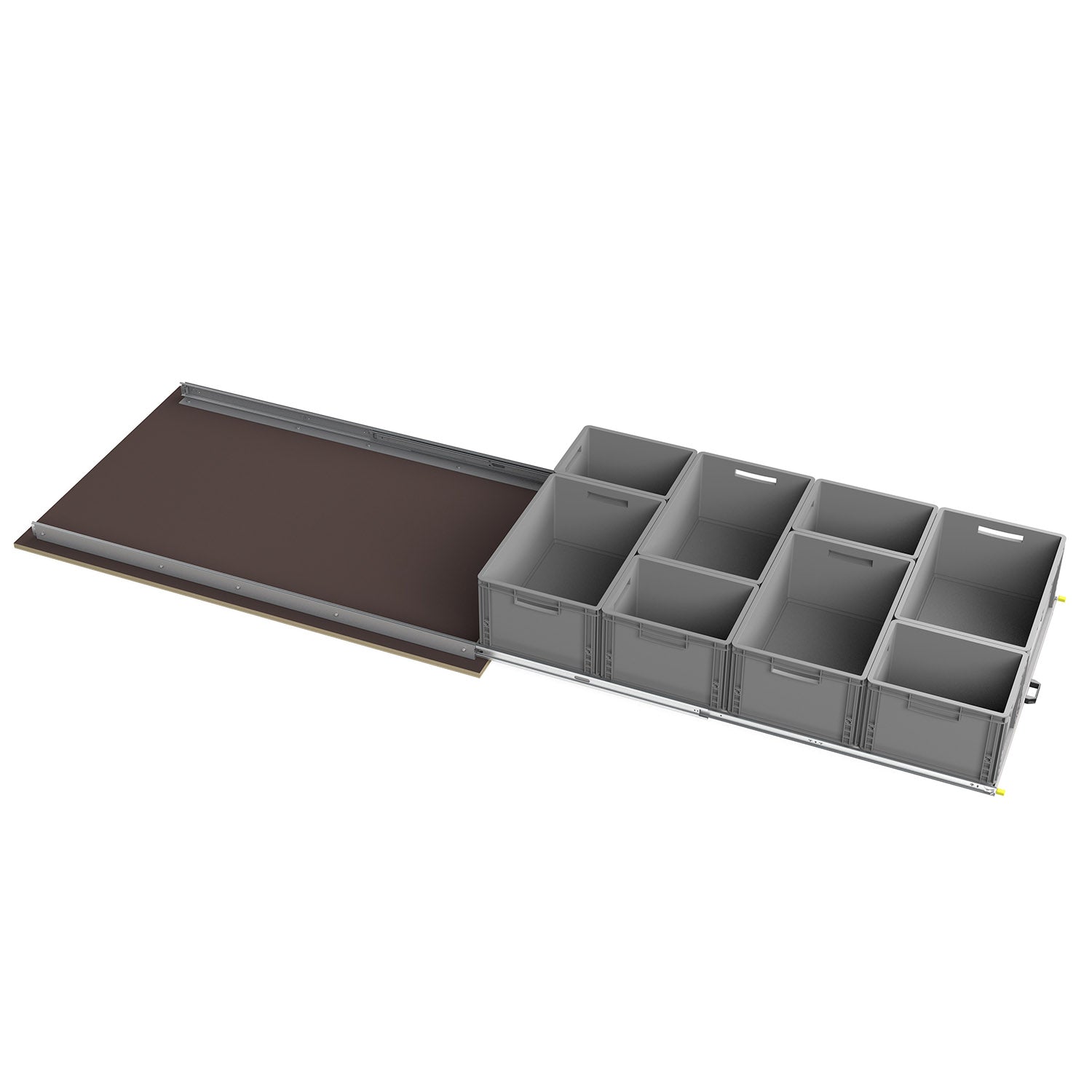

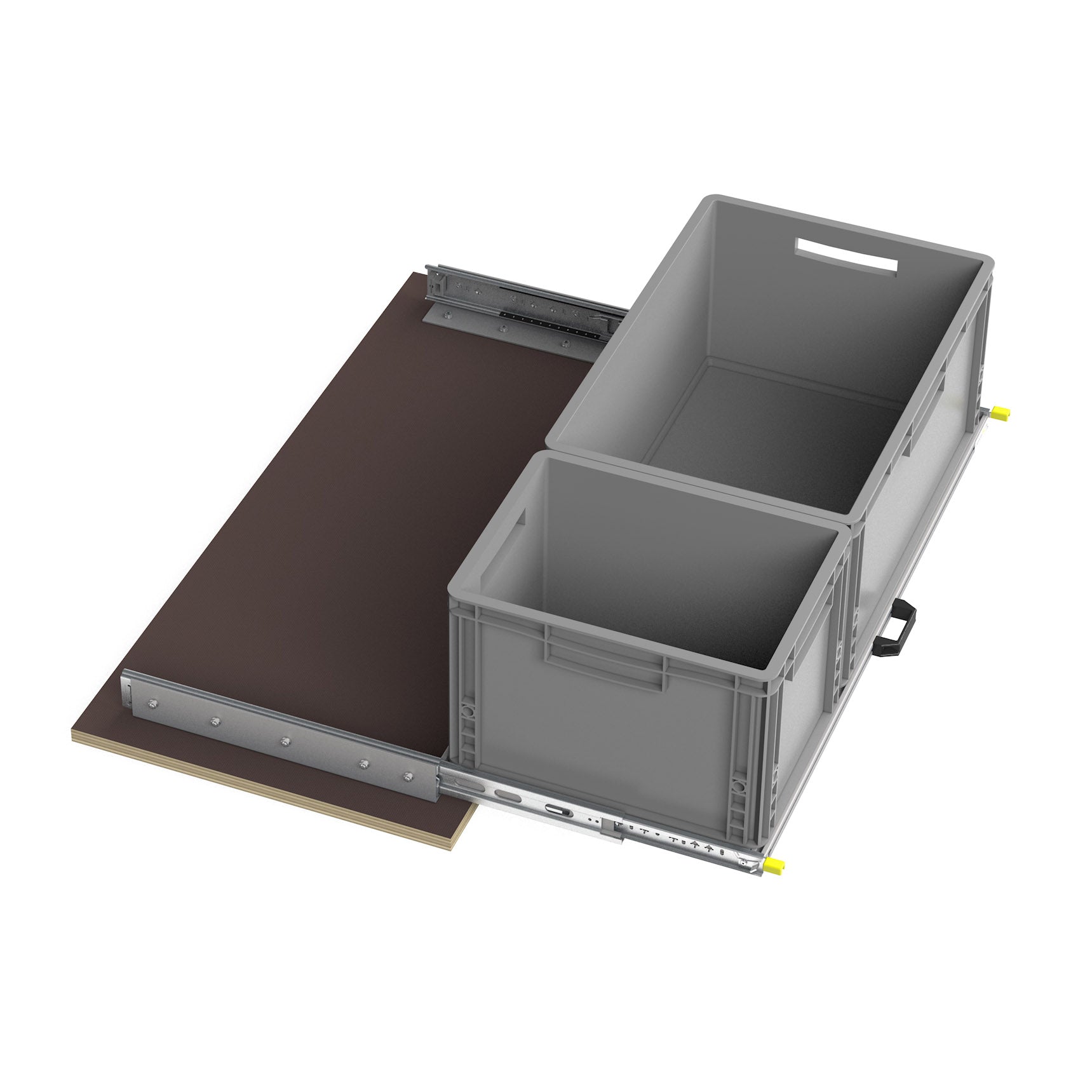

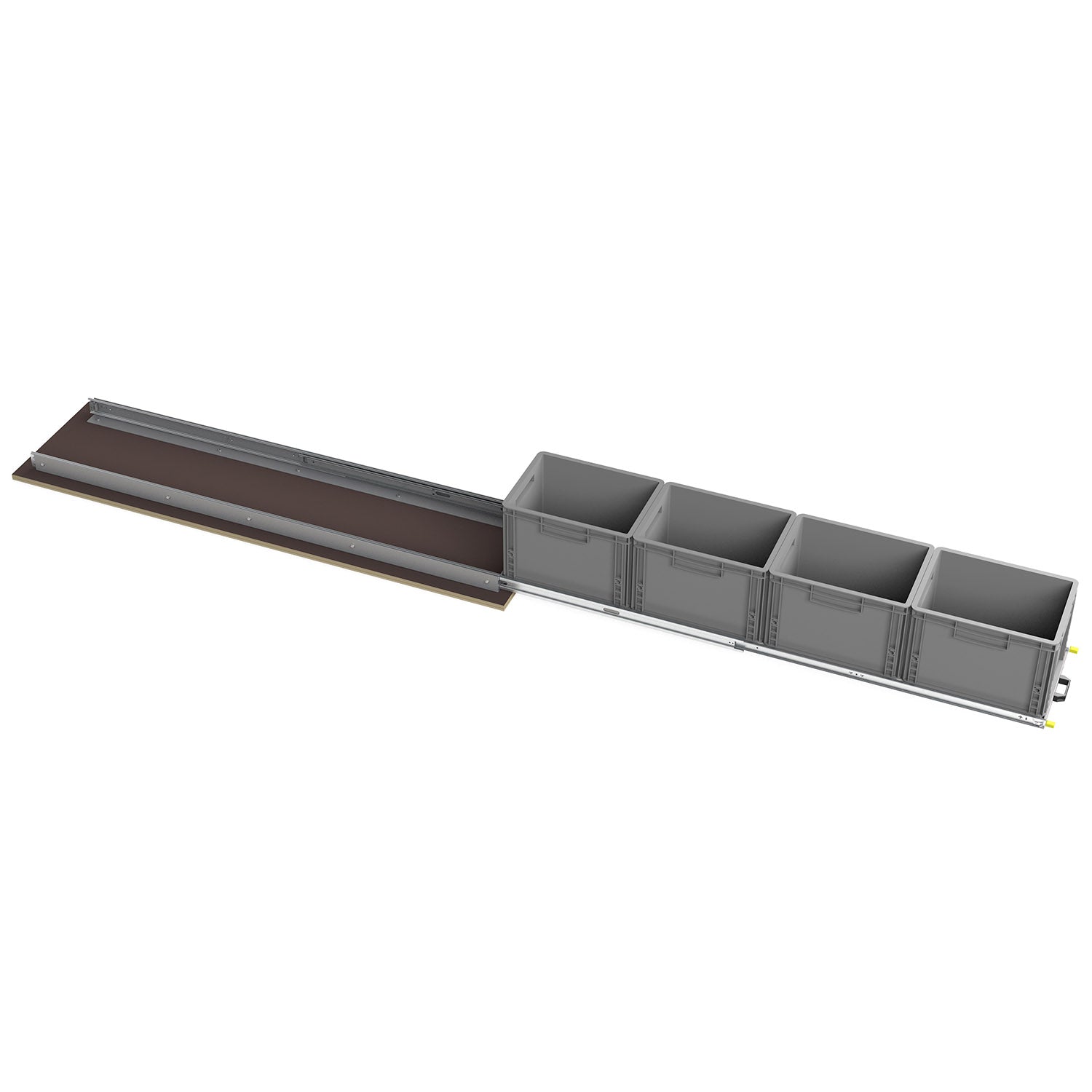

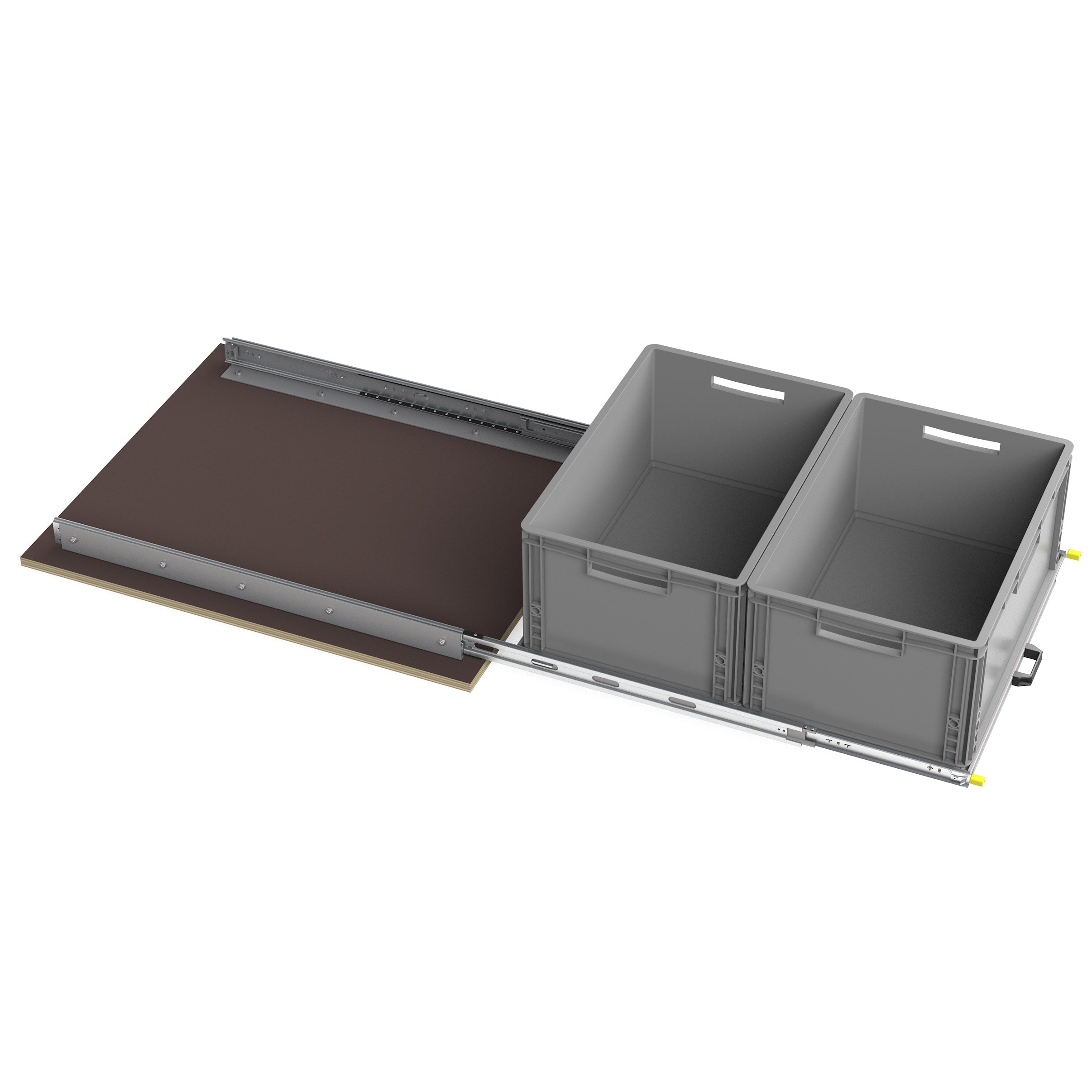

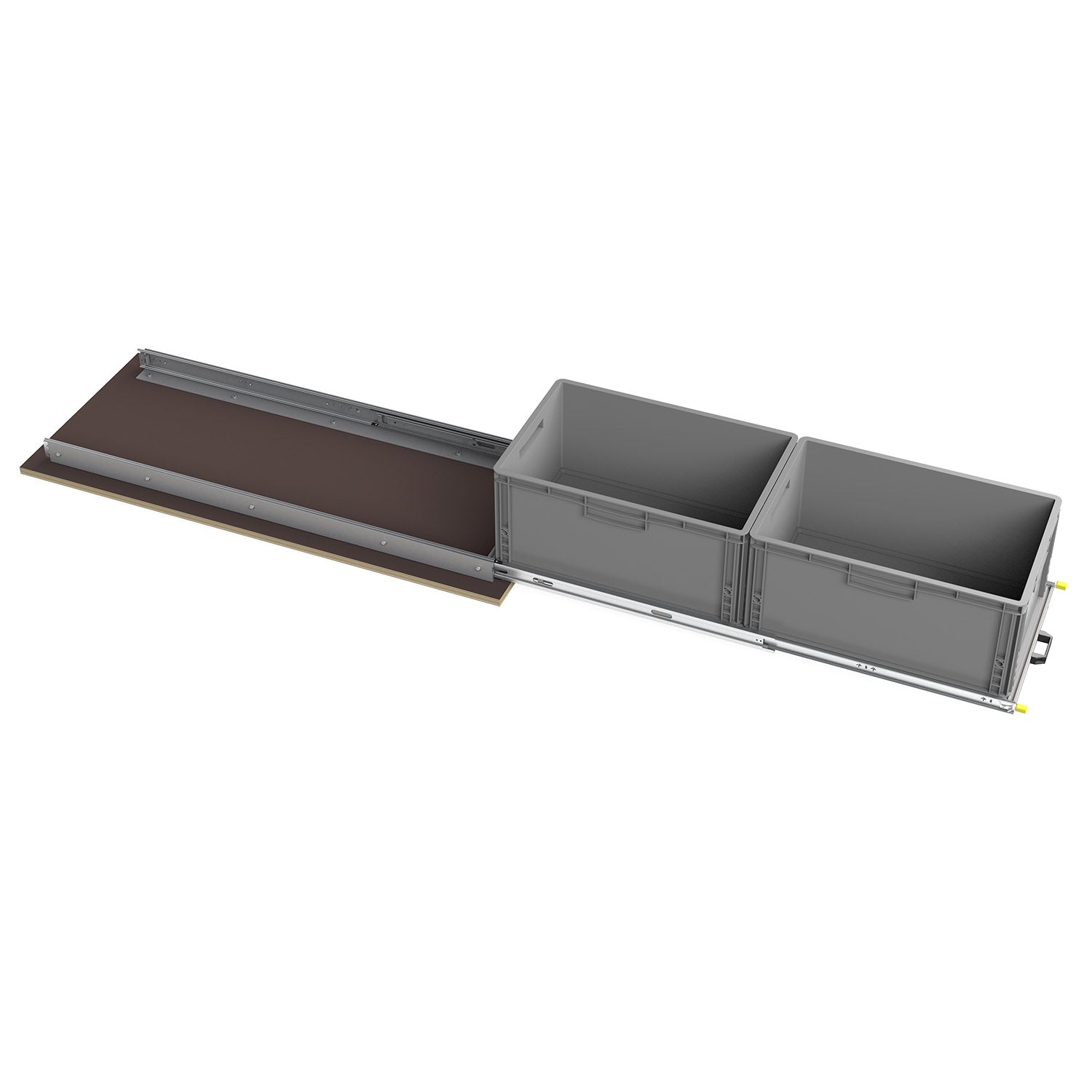

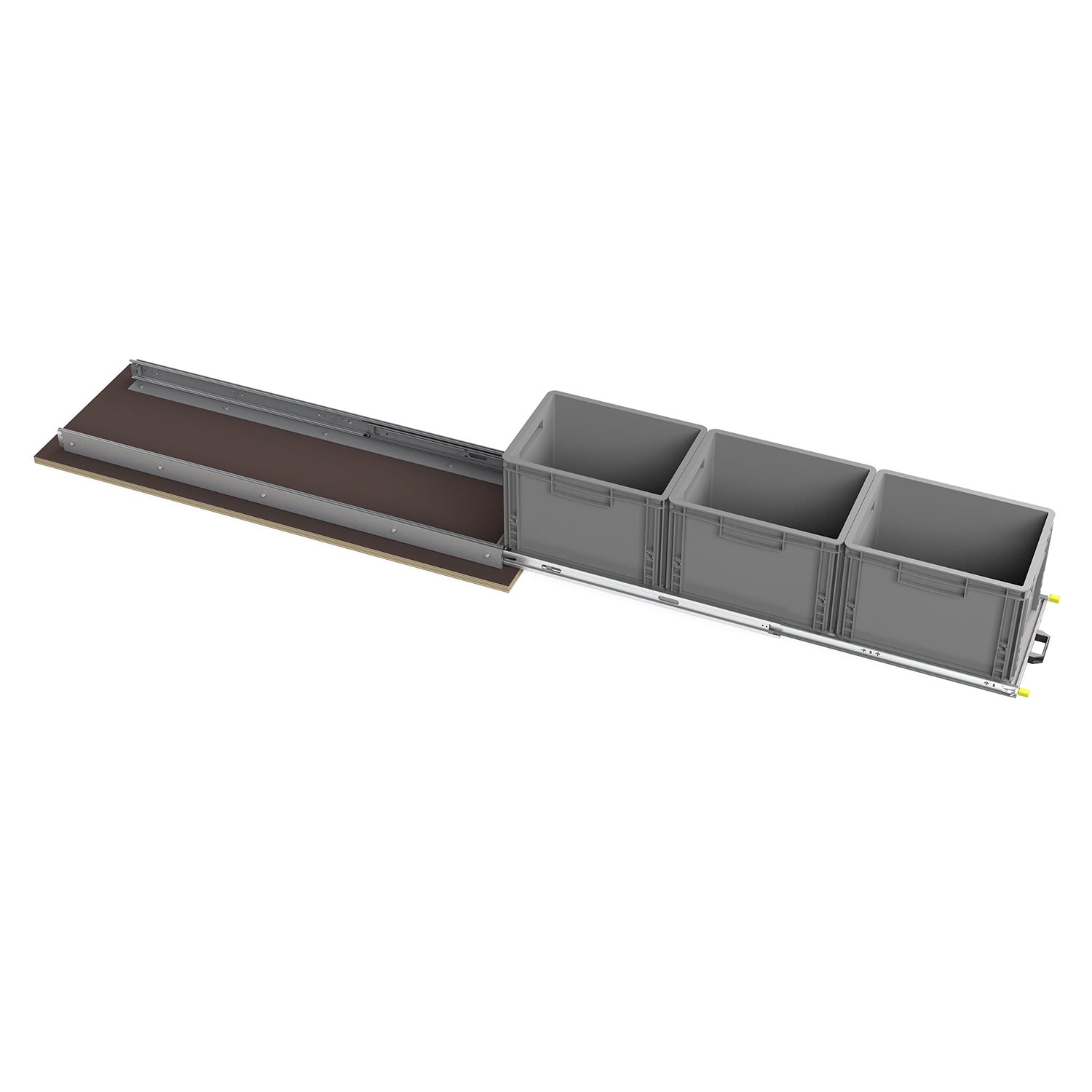

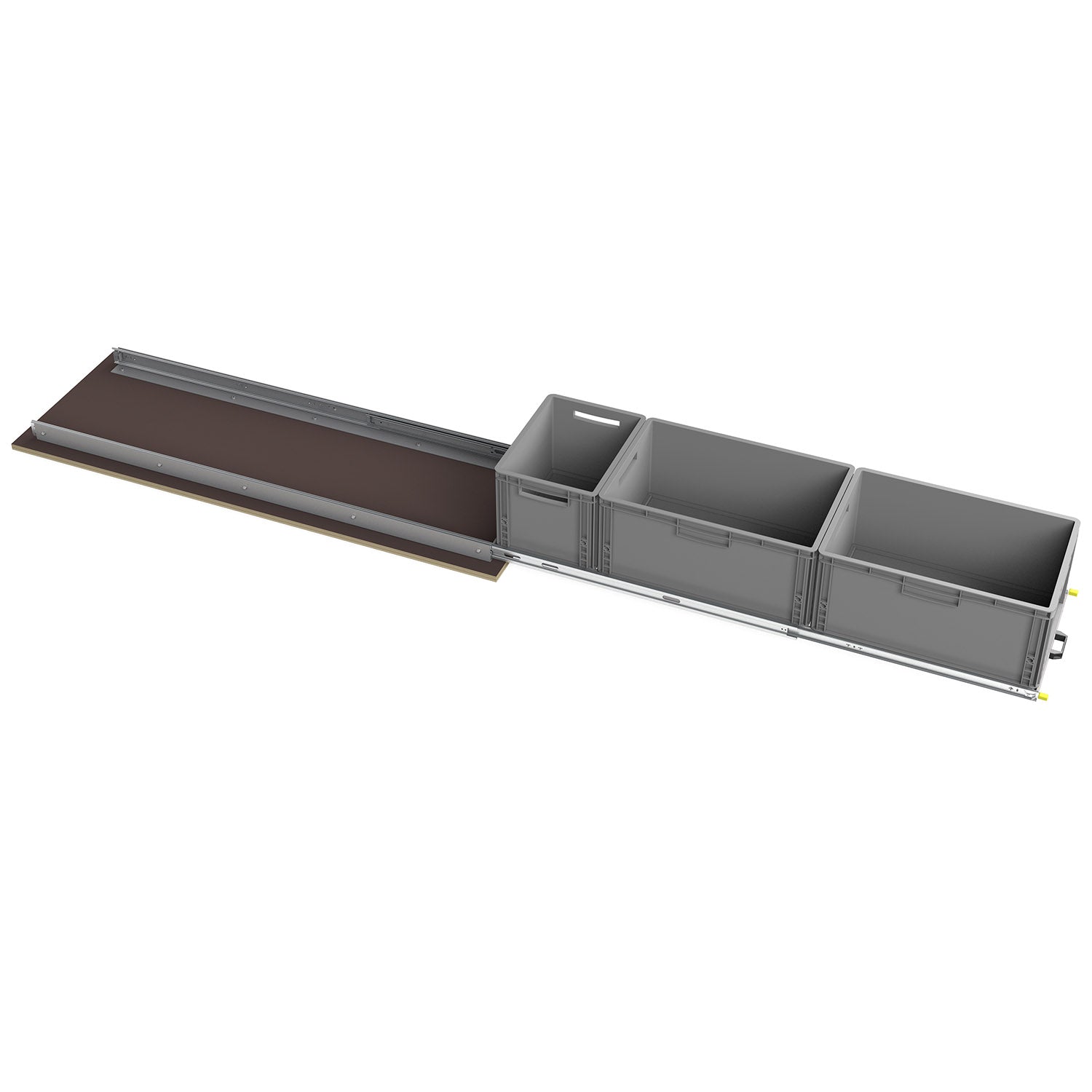

Der Auszug ist ideal für den individuellen Ausbau geeignet. Die Befestigung kann wahlweise direkt über die vorhandenen Bohrungen an der Wand oder mit Winkeln auf dem Boden erfolgen. Für die Varianten 53 mm / 100 kg und 57 mm / 130 kg stehen zusätzlich Montageprofile (Länge 750 mm) zur Verfügung.
Die Schwerlastauszüge werden dabei mittels Nutensteinen und Schrauben an den Montageprofilen befestigt. Anschließend den vormontierten Auszug in das Fahrzeug stellen und die Position der jeweils vier Befestigungspunkte auf der Bodenplatte markieren.
Danach den Auszug wieder entnehmen und an den Markierungen mit einem 10 mm Holzbohrer ca. 12 mm tief vorbohren. Die Einschraubmuffen in die Bohrlöcher eindrehen, den Auszug erneut einsetzen und durch die 4 Profilbohrungen in die Muffen verschrauben.
Nutensteine, Schrauben und Einschraubmuffen sind im Lieferumfang enthalten.
